PISTON Ø 74 pin Ø 15 rect./oil rings 3 B

123,99 €
Na zalogi Dostava: od 3 do 7 dni
SKU
3411489.B0
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.

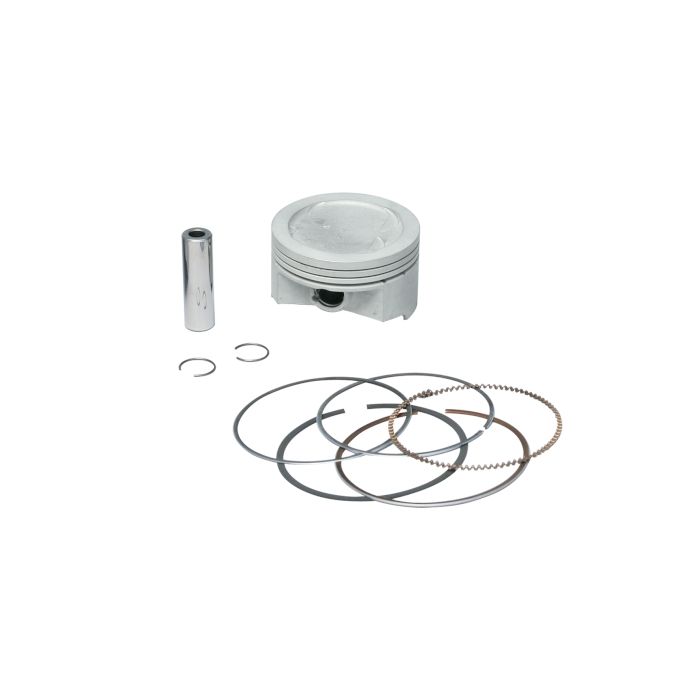

main product photo

All Malossi cylinders - both cast-iron and aluminum - are selected by size.

The range goes from size 0 (smallest piston) to size D (biggest piston). Every size features an increase of 0.01 mm.



When ordering a piston, please carefully specify the requested size marking as follows:

Example

  • 34 3448          corresponds to size 0
  • 34 3448.A0     corresponds to size A
  • 34 3448.B0     corresponds to size B
  • 34 3448.C0     corresponds to size C
  • 34 3448.D0     corresponds to size D



Only cast-iron cylinders are also available in oversize as follows:

  • 34 3448.40     corresponds to an increase of 0.4 mm
  • 34 3448.80     corresponds to an increase of 0.8 mm

For pistons produced in the past, 0.2 mm and 0.6 mm oversizes are also available (ex. 34 3448.20 - 34 4375.60).

All Malossi cylinders are selected by size and bear size marking, week number and year.

All Malossi pistons bear the own size marking (number or letter).

Piston must be put into cylinder with the arrow drawn on the piston crown facing the exhaust.

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

Models

APRILIA : APRILIA ATLANTIC - Arrecife 125 4T LC, APRILIA ATLANTIC - Arrecife 200 4T LC (PIAGGIO M234M), APRILIA SCARABEO 125 4T LC (PIAGGIO), APRILIA SPORTCITY 125 4T LC (PIAGGIO M281M), APRILIA SPORTCITY 200 4T LC euro 3 (PIAGGIO), APRILIA SR MAX 125 ie 4T LC euro 3 2011->2014 (M357M)

DERBI : DERBI GP1 125 4T LC euro 2-3, DERBI RAMBLA 125 4T LC euro 3 (PIAGGIO M287M)

GILERA : GILERA DNA 125 4T LC, GILERA DNA 180 4T LC, GILERA NEXUS 125 4T LC euro 3 2007->2008 (M355M), GILERA NEXUS 125 ie 4T LC euro 3 2008->2010 (M357M), GILERA RUNNER ST 125 4T LC euro 3, GILERA RUNNER ST 200 4T LC euro 3, GILERA RUNNER VX 125 4T LC 2006->, GILERA RUNNER VX 125 4T LC <-2005, GILERA RUNNER VXR 180 4T LC, GILERA RUNNER VXR 200 4T LC <-2005, GILERA RUNNER VXR 200 4T LC 2006->

MALAGUTI : MALAGUTI PHANTOM MAX 200 4T LC (PIAGGIO), MALAGUTI MADISON 180 4T LC (PIAGGIO), MALAGUTI MADISON 200 4T LC (PIAGGIO), MALAGUTI MADISON 3 125 4T LC (PIAGGIO)

PIAGGIO : PIAGGIO BEVERLY 125 4T LC <-2009, PIAGGIO BEVERLY 125 ie 4T LC euro 3 2010->2015 (QUASAR M691M), PIAGGIO BEVERLY 200 4T LC, PIAGGIO CARNABY 125 4T LC euro 3 (LEADER M28FM), PIAGGIO CARNABY 200 4T LC euro 3 (LEADER M601M), PIAGGIO SUPER HEXAGON GTX 125 4T LC, PIAGGIO SUPER HEXAGON GTX 180 4T LC, PIAGGIO MP3 125 4T LC euro 3 (LEADER), PIAGGIO MP3 YOURBAN 4V 125 ie 4T LC euro 3 2011->2013 (M711M), PIAGGIO X7 125 4T LC euro 3 (LEADER), PIAGGIO X8 125 4T LC euro 2-3 (LEADER), PIAGGIO X8 200 4T LC, PIAGGIO X9 4V 125 4T LC, PIAGGIO X9 AMALFI 180 4T LC, PIAGGIO X9 200 4T LC, PIAGGIO XEvo 125 4T LC euro 3 (LEADER)

VESPA : VESPA Granturismo L - GT 125 4T LC (LEADER), VESPA GTV 125 4T LC (LEADER), VESPA Granturismo L - GT 200 4T LC (M312M), VESPA GTS Super 125 ie 4T LC euro 3 <-2013 (M455M)
