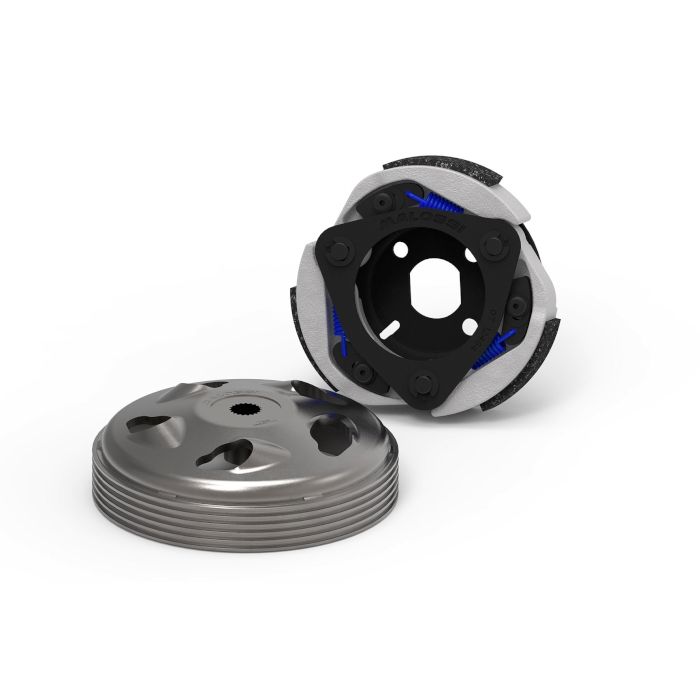

MAXI DELTA SYSTEM (Clutch BELL Ø 125)
177,18 €
Na zalogi Dostava: od 3 do 7 dni
SKU
5217725
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.
DELTA SYSTEM
Centrifugal clutch system with clutch bell for scooter RACING
System comprises the famous:
- Patented adjustable clutch (Delta Clutch).
- In addition, the reinforced, anti-failure clutch bell (Wing Clutch Bell) with cooling fins, dynamically balanced, designed for competitive and sport applications.
Delta Clutch
Delta Clutch is a clutch developed within the scooter racing circuits and in a short period has become a benchmark product, key to scooter performance.
The simplicity of the system quickly allows spring adjustment with regards to centrifugal force and the possibility of interchanging a spring with different K values. These values are listed in the Malossi catalogue.
Another option this system allows is position adjustment of the small mass which determines the pressure between friction material and clutch bell. In addition, this small mass is interchangeable with other masses of varying weights.
The complete system is patented to protect against shameless attempts to copy and falsify the product.
Delta has attained the recognition of many qualified tuners and the facts are the proof : used by all the racing teams and a vast amount of sport riders, resulting in a continuous increase in sales.
As always, Malossi constantly analyses its products during their operation and Delta is no exemption. It has been optimized by implementing small but important updates, maintaining Delta as a leading edge product.
We are very proud of the fact that Malossi clutches are asbestos free, however, much investment in research was needed in achieving this present level of quality, reliability, and especially selection of friction materials.
We can now affirm, with great certainty, that we possess an exclusive formula for producing a high temperature resistant material that does not alter its coefficient of friction due to prolonged operational stresses.
Wing Clutch Bell
Technical Specifications
- Clutch Bell forged using Fe DC04 deep-drawing steel.
- Carbon steel centre hub made of round stock and TIG welded.
- Surface hardened through nitriding.
- Finned reinforcement ring, made of machined carbon steel, black oxide surface finish, press fit.
- 100% dynamically balanced.
Due to the strong demand for these two products, we decided to offer them both in a single package.
This allows Malossi to supply two quality products with a cost savings for the customer.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7312522.pdf |
|---|
BENELLI : BENELLI CAFFèNERO 150 4T LC euro 3 (QJ158MJ)
CF MOTO : CF MOTO URBAN R 150 4T LC (1P 58 MJ)
GARELLI : GARELLI XO' 125 ie 4T euro 3 (1P52 QMI-2), GARELLI XO' 150 ie 4T euro 3 (1P58 QMJ)
HONDA : HONDA @ 125 4T LC, HONDA @ 150 4T LC, HONDA ADV 150 ie 4T LC 2020->2022 (KF39E), HONDA DYLAN 125 4T LC, HONDA DYLAN 150 4T LC, HONDA PCX 125 ie 4T LC euro 3 <-2011 (JF28E), HONDA PCX 125 ie 4T LC euro 3 2015->2017, HONDA PCX 125 ie 4T LC euro 4 2018->2020 (JF64E), HONDA PCX 125 ie 4T LC euro 3 2012->2014 (JF47), HONDA PCX 125 ie 4T LC euro 5 2021-> (JK05E), HONDA PCX 150 ie 4T LC euro 3 2012->2014 (KF12E), HONDA PCX 150 ie 4T LC euro 3 2015->2017 (KF19E), HONDA PCX 150 ie 4T LC euro 4 2018->, HONDA PANTHEON 125 ie 4T LC, HONDA PANTHEON 150 ie 4T LC, HONDA PS 125 ie 4T LC euro 3, HONDA PS 150 ie 4T LC euro 3, HONDA SH - SH Scoopy 125 4T LC, HONDA SH i ABS 125 ie 4T LC euro 3 2013->2016 (JF41E), HONDA SH i ABS 125 ie 4T LC euro 4 2017->2019 (JFG8E), HONDA SH i ABS 125 ie 4T LC euro 5 2020->2023 (JF90E), HONDA SH I 125 ie 4T LC euro 3 2009-> (JF14E), HONDA SH mode 125 ie 4T LC euro 3 (JF51E), HONDA SH mode 125 ie 4T LC euro 5 2021-> (JK01E), HONDA SH - SH Scoopy 150 4T LC, HONDA SH i ABS 150 ie 4T LC euro 3 2013->2016 (KF13E), HONDA SH i ABS 150 ie 4T LC euro 4 2017->2019, HONDA SH i ABS 150 ie 4T LC euro 5 2020->, HONDA SH I 150 ie 4T LC euro 3 2009-> (KF08E), HONDA SH I 125 ie 4T LC <-2008, HONDA SH I 150 ie 4T LC <-2008, HONDA S-Wing 125 ie 4T LC euro 3, HONDA S-Wing 150 ie 4T LC euro 3 (KF06E), HONDA VARIO 150 ie 4T LC 2019-> (KF29E), HONDA SH i ABS 125 ie 4T LC euro 5 2024-> (JF90E)
KAWASAKI : KAWASAKI J 125 ie 4T LC euro 3 <-2016 (WS25), KAWASAKI J 125 ie 4T LC euro 4 2017->
KEEWAY : KEEWAY LOGIK 125 4T LC euro 3 (QJ153MI-2), KEEWAY OUTLOOK 125 4T LC (QJ153MI-2), KEEWAY OUTLOOK 150 4T LC (QJ158MJ)
KYMCO : KYMCO AGILITY 125 4T euro 3 (KN25), KYMCO AGILITY R16 125 4T euro 3 (KL25B), KYMCO AGILITY RS 125 4T euro 3 (KN25SR), KYMCO AGILITY 150 4T euro 3, KYMCO AGILITY R16 150 4T euro 3 (KL30), KYMCO AGILITY R16 i 200 4T LC euro 3 (KF40-KF40B), KYMCO AGILITY R16 + 125 ie 4T euro 4 <-2020 (KL25F), KYMCO AGILITY R16 + 125 ie 4T euro 5 2021-> (KL25H), KYMCO AGILITY R16 + 150 ie 4T euro 4 2017->, KYMCO LIKE 125 4T euro 3 (KA40), KYMCO LIKE CBS 125 ie 4T euro 4 2018-> (TE 25), KYMCO LIKE S 125 ie 4T LC euro 5 2021-> (TE25), KYMCO LIKE 200 ie 4T euro 3 (KA40), KYMCO MOVIE 125 4T euro 3, KYMCO PEOPLE - PEOPLE S 125 4T euro 3, KYMCO PEOPLE S 125 ie 4T euro 5 2021-> (TF25B), KYMCO PEOPLE One 125 ie 4T euro 3 (KM25), KYMCO PEOPLE 150 4T, KYMCO PEOPLE S 200 4T (BA 40), KYMCO PEOPLE - PEOPLE S 125 ie 4T euro 4 2018-> (TF25), KYMCO PEOPLE S 150 ie 4T euro 4 2018->2020 (TF30), KYMCO SUPER 8 125 4T euro 3 (KL25), KYMCO VIVIO 125 4T, KYMCO VIVIO 150 4T
LAMBRETTA : LAMBRETTA V Special 125 ie 4T euro 4 2019->2022 (XS1P52QMI-3C)
MALAGUTI : MALAGUTI BLOG 125 ie 4T LC euro 3 (03), MALAGUTI BLOG 160 ie 4T LC euro 3 (04), MALAGUTI CENTRO 125 ie 4T LC euro 3, MALAGUTI CENTRO 160 ie 4T LC euro 3 (02), MALAGUTI CIAK MASTER 125 4T, MALAGUTI CIAK MASTER 150 4T, MALAGUTI CIAK MASTER 200 4T
OVER : OVER THOR 125 4T euro 3 (LJ1P52QMI)
PEUGEOT : PEUGEOT BELVILLE 125 4T LC euro 4 (XS1P52 MI-2), PEUGEOT DJANGO 150 4T euro 3 (XS1P57QMJ-2B), PEUGEOT LXR 125 4T LC euro 3 (MB), PEUGEOT TWEET 125 4T euro 3
ROYAL ALLOY : ROYAL ALLOY GP 125
SCOMADI : SCOMADI TT125 125
SYM : SYM FIDDLE III W4 125 4T euro 3 (XS1P52QMI-3B), SYM JET 14 125 ie 4T LC euro 4 2018-> (XS1P52 MI-2), SYM HD Evo I 125 ie 4T LC euro 3, SYM SYMPHONY ST W4 125 4T euro 3 (XS1P52QMI-3B), SYM SYMPHONY S 125 4T euro 3 (XS1P52QMI-4), SYM SYMPHONY 125 ie 4T LC euro 5 2021-> (XS1P520MI-4A)
WT MOTORS : WT MOTORS ATENE 152 4T LC (1P58MJA)
WOTTAN MOTOR : WOTTAN MOTOR STORM T 125 ie 4T euro 5 2023->, WOTTAN MOTOR STORM 125 ie 4T euro 5 2023->
VOGE : VOGE SFIDA SR1 125 ie 4T LC euro 5 2023-> (LC1P52MI)
maxi delta clutch adjustable automatic clutch for clutch bell ø 125 : 5212487
maxi wing clutch bell internal ø 125 mm and weight 960 grams : 7717695B
