FLY SYSTEM (PIAGGIO - Clutch BELL Ø 107)
91,73 €
Na zalogi Dostava: od 3 do 7 dni
SKU
5214111
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.
FLY SYSTEM

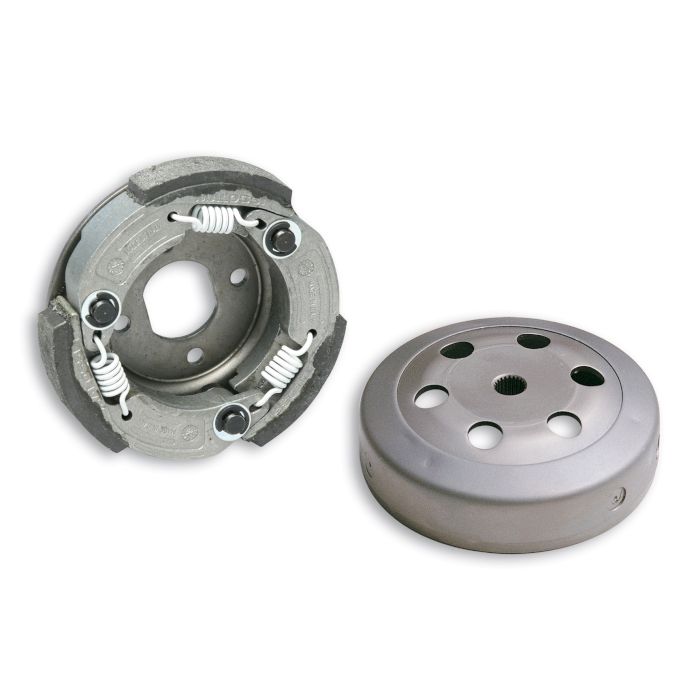

Centrifugal clutch system with clutch bell for scooter SPORT
System comprises the famous :
- Reinforced clutch for extreme street use (Fly Clutch)
- In addition, steel (DC04) clutch bell (Clutch Bell) dynamically balanced.
Fly System : two products that Malossi produces and sells separately, with great success.
Malossi now offers these two quality products paired, guaranteeing the optimal scooter transmission performance.
Due to the strong demand for these two products, we decided to offer them both in a single package.
This allows Malossi to supply two quality products with a cost savings for the customer.
Fly Clutch
Fly Clutch is a reinforced centrifugal clutch designed to easily withstand extreme operation, for example, constant stop and go on steep roads, city traffic, long series of traffic lights, especially with a passenger, and during hot weather when it becomes difficult to control scooter temperature levels.
Fly profits greatly from Malossi's experience, results acquired from research and thousands of tests performed in the field of scooter racing.
Clutch Bell
Technical Specifications
- Clutch Bell forged using Fe DC04 deep-drawing steel;
- Carbon steel centre hub made of round stock and TIG welded;
- Anti-vibration band welded using a 3 point 120° pattern;
- 100% dynamically balanced;
- Surface hardened through nitriding.
Further improving a product is Malossi's passion, constantly searching for any aspect to improve hence optimizing operation and increasing reliability and safety. This directly benefits the customer.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/73 8796.pdf |
|---|
APRILIA : APRILIA MOJITO CUSTOM 50 2T, APRILIA SCARABEO 50 4T (PIAGGIO C373M), APRILIA SCARABEO 4V 50 4T euro 2, APRILIA SCARABEO CLASSIC 50 2T euro 4 2018-> (CA91M), APRILIA SCARABEO STREET 50 2T (PIAGGIO), APRILIA SCARABEO STREET 50 2T euro 4 2018-> (CA91M), APRILIA SPORTCITY ONE 50 4T (PIAGGIO C377M), APRILIA SPORTCITY ONE STREET 50 2T euro 2, APRILIA SR (carb.) 50 2T LC 2004-> (PIAGGIO), APRILIA SR R 50 2T LC euro 4 2018-> (PIAGGIO CA81M), APRILIA SR R FACTORY 50 2T LC (PIAGGIO C361M), APRILIA SR DITECH GP1 50 2T LC (PIAGGIO C361M), APRILIA SR MOTARD 50 2T euro 2, APRILIA SR MOTARD 50 2T euro 4 2018-> (CA41M), APRILIA SR R (carb.) 50 2T LC (PIAGGIO), APRILIA SR Street 50 2T LC euro 2, APRILIA SXR 50 ie 4T euro 5 2021-> (CD32M)
BAOTIAN : BAOTIAN ECO BIKE 50 4T (139 QMB), BAOTIAN REBEL - ROCKY - TANCO 9/12 50 4T
BSV : BSV DIO GP 50 (AF18E), BSV DIO ZX 50 2T 1994-> (AF34E), BSV DIO ZX 50 <-1993 (AF18E)
CAGIVA : CAGIVA CITY 50 2T
DERBI : DERBI ATLANTIS - BULLET 50 2T 2003->, DERBI GP1 50 2T LC, DERBI GP1 OPEN 50 2T LC, DERBI GP1 REVOLUTION 50 2T LC, DERBI VARIANT Sport 50 2T
GARELLI : GARELLI FLEXI' 50 4T euro 2 (1P139 QMB), GARELLI TIESSE FOUR 50 4T euro 2 (1P39QMB)
GILERA : GILERA DNA 50 2T LC, GILERA EASY MOVING 50 2T, GILERA ICE 50 2T, GILERA RUNNER PureJet 50 2T LC <-2005, GILERA RUNNER PureJet 50 2T LC 2006->, GILERA RUNNER SP 50 2T LC <-2005, GILERA RUNNER SP 50 2T LC 2006-> (C451M), GILERA RUNNER 50 2T LC, GILERA STORM 50 2T, GILERA STALKER 50 2T, GILERA TYPHOON 50 2T, GILERA TYPHOON X 50 2T
HONDA : HONDA DIO ZX 50 2T 1994-> (AF34E), HONDA BALI 50 2T, HONDA DIO G 50 2T (AF18E), HONDA SH 50 2T 1996->, HONDA SFX 50 2T, HONDA SGX SKY 50 2T, HONDA SHADOW 50 2T (AF18E), HONDA SXR 50 2T, HONDA X8R X - X8R S 50 2T, HONDA DIO ZX 50 2T <-1993 (AF18E)
HSC : HSC SC 01 L 50 (AF18E)
HUPPER : HUPPER MONTECARLO 30 50 4T (139QMB)
ITALJET : ITALJET JET SET 50 2T, ITALJET TORPEDO NEW 50 2T
KYMCO : KYMCO AGILITY R16 - RS 50 4T euro 2 (KL10B), KYMCO AGILITY R16 50 2T euro 2 (KF10B), KYMCO AGILITY R10/12 - RS 50 4T euro 2 (KL10B), KYMCO AGILITY R12 50 ie 4T euro 4 2019->, KYMCO AGILITY R16 + 50 2T euro 2 2016-> (KF10D), KYMCO AGILITY R16 + 50 4T euro 2 2017-> (KL10C), KYMCO AGILITY R16 + 50 ie 4T euro 4 2019->, KYMCO DINK 50 2T, KYMCO DINK 50 4T euro 2, KYMCO DINK 50 2T LC, KYMCO DJ X 50 2T, KYMCO DJ Y 50 2T, KYMCO HEROISM 50 2T, KYMCO LIKE 50 4T euro 2 (KG10A), KYMCO PEOPLE 50 2T, KYMCO PEOPLE 50 4T euro 2, KYMCO PEOPLE S 50 4T euro 2 (BB10), KYMCO PEOPLE S 50 ie 4T euro 4 2019-> (KP10), KYMCO SENTO 50 4T euro 2, KYMCO SNIPER 50 2T, KYMCO SUPER 8 50 4T euro 2 (KL10), KYMCO SUPER 9 50 2T LC, KYMCO TOP BOY - COBRA 50 2T, KYMCO VITALITY 50 4T euro 2 (SG10), KYMCO SUPER 8 R 50 4T euro 5 2023-> (KP10G)
MALAGUTI : MALAGUTI CENTRO 50 4T euro 2 (C432M), MALAGUTI CIAK MASTER 50 4T euro 2, MALAGUTI DVD 50 4T (139 QMB)
PIAGGIO : PIAGGIO NRG Power 50 2T LC euro 4 2018->2020 (CA71M), PIAGGIO DIESIS 50 2T, PIAGGIO NRG EXTREME 50 2T, PIAGGIO NRG EXTREME 50 2T LC, PIAGGIO FLY 50 2T, PIAGGIO FLY 50 4T, PIAGGIO NEW FLY 4V 50 4T euro 2, PIAGGIO FREE 50 2T, PIAGGIO LIBERTY 50 2T, PIAGGIO LIBERTY iGet 50 ie 4T euro 3 2016->2017 (C541M), PIAGGIO LIBERTY iGet 50 ie 4T euro 4 2018->2020 (CA11M), PIAGGIO LIBERTY 3V iGet 50 ie 4T euro 5 2021-> (CD11M), PIAGGIO LIBERTY 50 4T, PIAGGIO LIBERTY 4V 50 4T euro 2, PIAGGIO NRG MC2 50 2T LC <-1997, PIAGGIO NRG MC2 50 2T LC 1998->, PIAGGIO NRG MC3 Purejet 50 2T LC, PIAGGIO NRG 50 2T LC, PIAGGIO NRG MC3 DT 50 2T, PIAGGIO NRG MC3 DD 50 2T LC, PIAGGIO NTT 50 2T LC, PIAGGIO NRG Power DD 50 2T LC, PIAGGIO NRG Power DT 50 2T (C453M), PIAGGIO NRG Power Purejet 50 2T LC, PIAGGIO QUARTZ 50 2T LC, PIAGGIO SFERA RESTYLING 50 2T, PIAGGIO ZIP S 3V iGet 50 ie 4T euro 5 2021->, PIAGGIO TYPHOON 50 2T 2007->2010, PIAGGIO TYPHOON 50 2T euro 2 2011->2017 (C421M), PIAGGIO TYPHOON 50 2T euro 4 2018-> (CA41M), PIAGGIO ZIP Fast Rider 50 2T, PIAGGIO ZIP 50 2T 2000-> (C25EM), PIAGGIO ZIP 3V iGet 50 ie 4T euro 4 2018->2020, PIAGGIO ZIP 3V iGet 50 ie 4T euro 5 2021->, PIAGGIO ZIP 50 4T, PIAGGIO ZIP SP 50 2T LC 2001->, PIAGGIO ZIP SP 50 2T LC <-2000
OVER : OVER B3 50 4T LC (LJ1P38MB)
PEUGEOT : PEUGEOT BUXY 50 2T, PEUGEOT ELYSEO 50 2T, PEUGEOT JET FORCE TSDI 50 2T LC (HL 1), PEUGEOT JET FORCE C-TECH 50 2T LC, PEUGEOT LOOXOR 50 2T, PEUGEOT LOOXOR TSDI 50 2T, PEUGEOT LUDIX 50 2T, PEUGEOT LUDIX BLASTER 50 2T LC (HL 2), PEUGEOT METAL-X 50 2T, PEUGEOT BUXY RS 50 2T, PEUGEOT SPEEDFIGHT 2 50 2T LC 2004->, PEUGEOT SPEEDFIGHT 3 50 2T (B1E 40 QMB), PEUGEOT SPEEDFIGHT 3 50 2T LC, PEUGEOT SPEEDFIGHT 50 2T, PEUGEOT SPEEDFIGHT 50 2T LC, PEUGEOT SPEEDAKE 50 2T, PEUGEOT SQUAB 50 2T, PEUGEOT SV GEO 50 2T, PEUGEOT TREKKER 50 2T, PEUGEOT V-CLIC 50 4T, PEUGEOT VIVACITY 50 2T, PEUGEOT VIVACITY COMPACT 50 2T (FB2FP), PEUGEOT X-FIGHT 50 2T, PEUGEOT X-FIGHT 2 50 2T LC 2004->, PEUGEOT X-FIGHT 50 2T LC, PEUGEOT ZENITH 50 2T
SYM : SYM DD 50 2T, SYM JET BasiX 50 2T euro 2, SYM JET SportX-S - SportX-R 50 2T euro 2 (T5C/1), SYM SYMPLY 50 4T euro 2 (XS1P39QMB)
VESPA : VESPA ET4 50 4T, VESPA ET2 50 2T 2000->, VESPA ET2 50 2T <-1999, VESPA LX 50 2T, VESPA LX 50 4T, VESPA LX 4V 50 4T euro 2, VESPA Primavera 3V iGet 50 ie 4T euro 4 2018->2020 (CA03M), VESPA Primavera 3V iGet 50 ie 4T euro 5 2021-> (CD01M), VESPA Primavera 50 2T euro 2 (C533M), VESPA Primavera 4V 50 4T euro 2 (C532M), VESPA S 50 2T euro 2 (C381M), VESPA S 4V 50 4T euro 2 (C386M), VESPA SPRINT 3V IGet 50 ie 4T euro 4 2018->2020 (CA01M), VESPA SPRINT 3V IGet 50 ie 4T euro 5 2021-> (CD01M), VESPA Sprint 50 2T euro 2, VESPA Sprint 4V 50 4T euro 2
WT MOTORS : WT MOTORS BILBAO 50 4T (PEDA 139QMB)
TNT MOTOR : TNT MOTOR CANCUN 50 4T euro 5 2023-> (LJ139QMB-2)
non-adjustable automatic fly clutch for clutch bell ø 107 : 528797
clutch bell internal ø 107 mm and weight 508 grams : 7711115
