ALUM-COMPL.CYL. Ø 75,5 pin Ø 16 I-TECH 4-stroke
413,32 €
Na zalogi Dostava: od 3 do 7 dni
SKU
3118686
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.

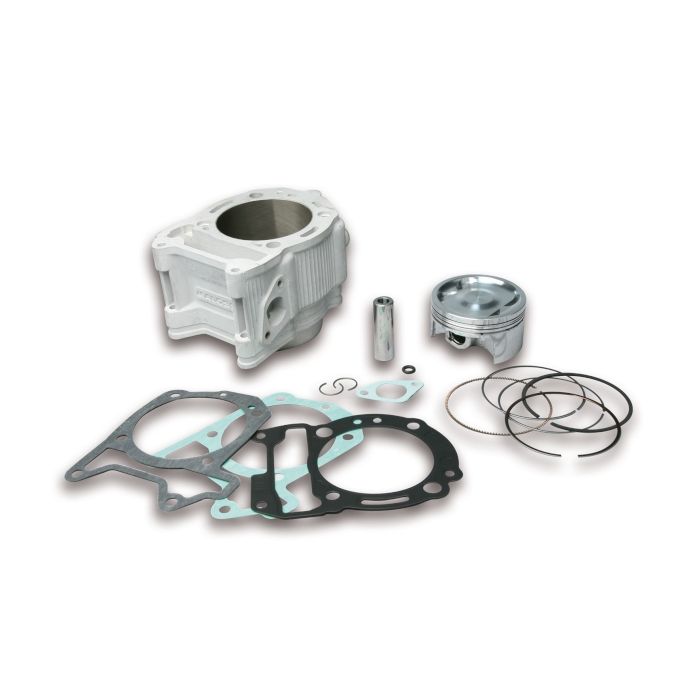

Aluminium complete cylinder I-TECH 4 Stroke
Ø 75,5 pin Ø 16 H2O
Cylinder
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances
- Machining: on machine tools with high precision numerical control
- Cylinder-piston connection with an allowance of 0.05 mm
- Recalculated and upgraded heat exchange surfaces
Piston
- Ultra compact with 3 rings
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces
- Machining on machine tools with numerical control
- Lightened and reinforced
- Upgraded heat exchange surfaces
Piston rings
- Special rings with high sliding ease and very high mechanical resistance
- I° ring compression in nitrided and chromium steel
- II° special cast iron ring
- Three piece scraper ring made of chromiumplated special steel alloy
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7311473.pdf |
|---|
PIAGGIO : PIAGGIO BEVERLY HPE 300 ie 4T LC euro 5 2021-> (MD21M)
VESPA : VESPA GTS Super RACING SIXTIES HPE 300 ie 4T LC euro 5 2021->2022 (MD31M), VESPA GTS Super HPE 300 ie 4T LC euro 4 2019->2020 (MA36M), VESPA GTS Super HPE 300 ie 4T LC euro 5 2021->2022 (MD31M), VESPA GTS Super Sport HPE 300 ie 4T LC euro 4 2019->2020 (MA36M), VESPA GTS Super Sport HPE 300 ie 4T LC euro 5 2021->2022 (MD31M), VESPA GTS Super Tech HPE 300 ie 4T LC euro 4 2019->2020 (MA36M), VESPA GTS Super Tech HPE 300 ie 4T LC euro 5 2021->2022 (MD31M), VESPA GTS Touring HPE 300 ie 4T LC euro 4 2019->2020 (MA36M), VESPA GTS Touring HPE 300 ie 4T LC euro 5 2021->2022 (MD31M), VESPA SEI GIORNI HPE 300 ie 4T LC euro 4 2019->2020 (MA36M), VESPA SEI GIORNI HPE 300 ie 4T LC euro 5 2021->2022 (MD31M), VESPA SEI GIORNI II EDITION HPE 300 ie 4T LC euro 5 2021->2022 (MD31M), VESPA GTS HPE 300 ie 4T LC euro 4 2019->2020 (MA36M), VESPA GTS HPE 300 ie 4T LC euro 5 2021->2022 (MD31M), VESPA GTS HPE 300 ie 4T LC euro 5 2023-> (MD31M), VESPA GTS Super HPE 300 ie 4T LC euro 5 2023-> (MD31M), VESPA GTS Super Sport HPE 300 ie 4T LC euro 5 2023->, VESPA GTS Super Tech HPE 300 ie 4T LC euro 5 2023->
complete cylinder gasket set ø 75,5 h2o 4 stroke : 1113960B
pin ø 16x09x51 for piston : 2314624
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size 0 : 3414323
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size 00 : 3414323.00
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size a : 3414323.A0
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size aa : 3414323.AA
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size b : 3414323.B0
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size bb : 3414323.BB
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size c : 3414323.C0
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size cc : 3414323.CC
piston ring set 4t ø 75,5 : 3513917
pin clip ø 16x1.2 c-shaped : 364452
