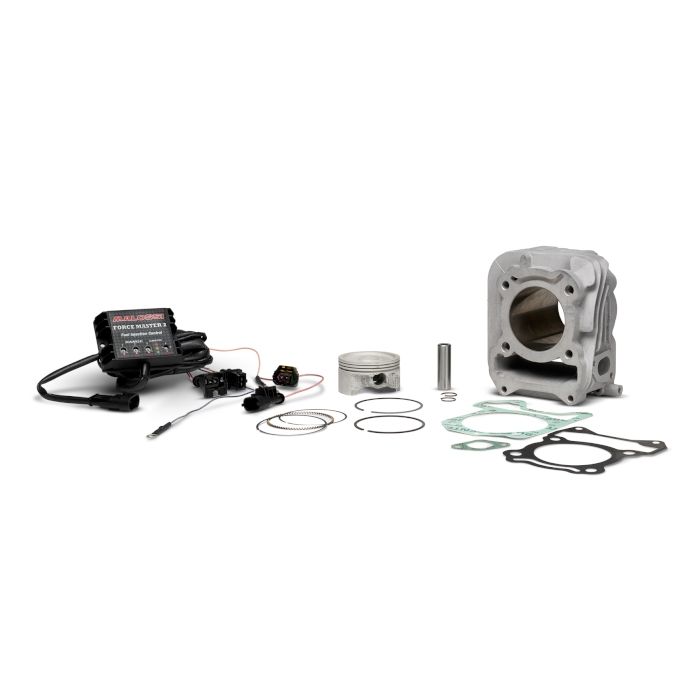

ALUM-COMPL.CYL. Ø 63 pin Ø 14 I-TECH 4-stroke

Complete cylinders I-TECH 4 STROKE

Piaggio / Vespa 125-150 4T

The new complete cylinders equipped with CDI!

Force Master is the innovative CDI which allows to change the injection in order to fit perfectly the new Malossi 4-stroke cylinder kit. This CDI has been scheduled with different maps so as to be coupled perfectly with your vehicle whatever its setting is!

Complete cylinder I-TECH 4 STROKE

• Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
• Machining: on machine tools with high precision numerical control.
• Cylinder-piston connection with an allowance of 0.05 mm.
• Recalculated and upgraded heat exchange surfaces.

CDI Force Master

• Carburation adjusting
• ± 20% at min/medium/max
• RPM limiter : + 1000 RPM (only for Code 3116669)
• 4 different maps

Piston

• Ultra compact with 3 rings.
• Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
• Machining on machine tools with numerical control.
• Lightened and reinforced.
• Upgraded heat exchange surfaces.

Piston rings

• Special rings with high sliding ease and very high mechanical resistance.
• I° ring compression in nitrided and chromium steel.
• II° special cast iron ring.
• Three piece scraper ring made of chromiumplated special steel alloy.

Technical features

Table of applications

The models listed in the chart here below may have a different THROTTLE BODY, depending on the year of production/ country where they are sold. Thus, they need a special cylinder equipped with cdi. When placing your order, please check the following identification numbers: country, frame number and engine number.

In case of countries which are not mentioned into below chart, you'll have to check the origin of the vehicle.

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
