OVER RANGE YAMAHA-MINARELLI
375,35 €
Na zalogi Dostava: od 3 do 7 dni
SKU
6112811
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.

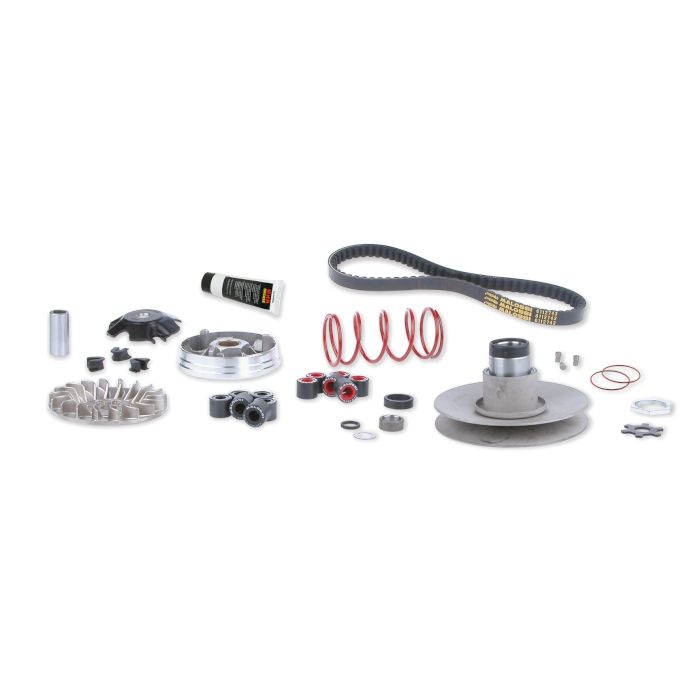

"OVER RANGE" Malossi transmission system
This new transmission system takes full advantage of the Malossi components already on sale last year, by adding several new parts that make the entire system particularly suited to the enormous power available. This latest system hinges on the new Fixed Pulley of the torque driver that has a larger diameter and the very latest specifications. The larger diameter of this pulley allows one to have a greater velocity-ratio range compared to the original pulley that has a notably smaller external diameter.
Malossi engineers have also taken particular care in realising this pulley right down to the smallest detail, using special materials and a particular type of thermochemical treatment that ensures exceptional surface hardness and therefore excellent wear and abrasion resistance. This new fixed pulley has been designed to offer perfect running if coupled to the Malossi Torque Driver that is already available and has the same diameter as the fixed pulley itself. In order to fully exploit the range of the new torque driver unit and the power ratings currently offered by competition machines, a new notched K Belt has been introduced with larger section and revised length to ensure maximum performance under all running conditions.
To complete the renewal of the transmission system and take full advantage of its exceptional specifications, the Multivar variable-speed drive has also been upgraded by fitting it with new tracks for the rollers and a new hub. This new variable-speed drive represents the evolution of the previous generations, the result of many years experience on the race circuit and the currently available CAD-CAM technology that allows top-level specifications to be obtained.
The whole completion of the OVER RANGE system is given by the patented adjustable clutch Delta Clutch and the Malossi reinforced clutch cap Wing Clutch Bell.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7311061.pdf |
|---|
APRILIA : APRILIA SR 50 2T 1994->, APRILIA AMICO 50 2T, APRILIA AREA 51 50 2T LC, APRILIA GULLIVER 50 2T LC, APRILIA RALLY 50 2T (MINARELLI), APRILIA SR NETSCAPER 50 2T LC (MINARELLI), APRILIA RALLY 50 2T LC (MINARELLI), APRILIA SCARABEO 50 2T (MINARELLI), APRILIA SR RACING 50 2T LC (MINARELLI), APRILIA SR REPLICA 50 2T LC <-1999, APRILIA SR STEALTH 50 2T LC (MINARELLI), APRILIA SR WWW 50 2T
BENELLI : BENELLI 491 SPORT 50 2T LC (MINARELLI), BENELLI 491 GT 50 2T (MINARELLI), BENELLI K2 50 2T, BENELLI K2 50 2T LC, BENELLI NAKED 50 2T
BETA : BETA ARK 50 2T, BETA ARK 50 2T LC, BETA EIKON 50 2T LC, BETA QUADRA 50 2T
ITALJET : ITALJET DRAGSTER 50 2T LC
MALAGUTI : MALAGUTI F12-PHANTOM 50 2T, MALAGUTI F15 FIREFOX 50 2T LC, MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC, MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC euro 2, MALAGUTI F12-PHANTOM 50 2T LC, MALAGUTI F12 R LC 50 2T LC euro 2
MBK : MBK BOOSTER 50 2T euro 0-1, MBK BOOSTER 50 2T euro 2 (A137E), MBK BOOSTER SPIRIT 50 2T euro 0-1, MBK FLIPPER 50 2T, MBK MACH G 50 2T, MBK MACH G 50 2T LC, MBK BOOSTER NAKED 50 2T euro 2 (A137E), MBK NITRO 50 2T LC, MBK BOOSTER NG 50 2T euro 0-1, MBK BOOSTER NG 50 2T euro 2 (A137E), MBK OVETTO 50 2T, MBK BOOSTER ROCKET 50 2T euro 0-1, MBK BOOSTER ROCKET 50 2T euro 2 (A137E), MBK STUNT 50 2T euro 0-1, MBK STUNT 50 2T euro 2
YAMAHA : YAMAHA AEROX 50 2T LC euro 0-1, YAMAHA AEROX 50 2T LC euro 2, YAMAHA BW'S 50 2T euro 0-1, YAMAHA BW'S 50 2T euro 2 (A137E), YAMAHA BW'S Original/Naked 50 2T euro 2 2010-> (A137E), YAMAHA BW'S NG 50 2T euro 0-1, YAMAHA BW'S NG 50 2T euro 2 (A137E), YAMAHA JOG R 50 2T, YAMAHA JOGRR 50 2T LC euro 2, YAMAHA NEO'S 50 2T, YAMAHA SLIDER 50 2T, YAMAHA SPY 50 2T, YAMAHA WHY 50 2T, YAMAHA ZUMA 50 2T
variator spring guide : 259464B
multivar mhr variator for yamaha - minarelli for over range : 5112800
rear pulley system kit ø 128 : 619733
x k belt for over range (18x10,2x782 mm 28°) : 6115822
