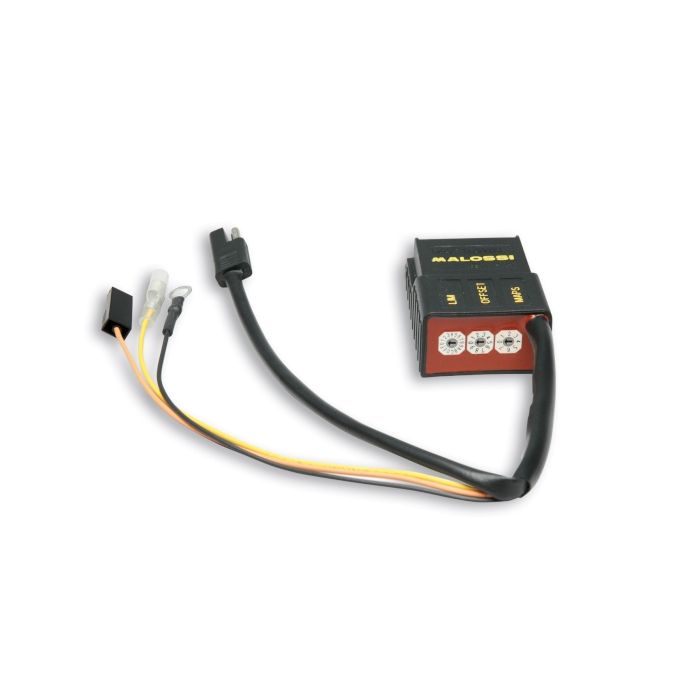

MHR TEAM DIGITRONIC-TRIMMER digital electronic controller
181,05 €
Na zalogi Dostava: od 3 do 7 dni
SKU
5514398
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.
The inner rotor ignition systems designed by Malossi are based on the state-of-the-art technology applied to racing. Such a new system resulted from the need to overcome the technical limitations imposed by conventional flywheel ignition, which cannot ensure consistent performance over 10,000 rpm and causes severe setting-up problems for racing vehicles.
We made the control unit even more immune to interferences developing an uP STM8 - 8 bit microprocessor with processing speed of 20MIPS, guaranteeing spark timing with greater accuracy than prior versions!
The MHR version includes a control unit with variable spark advance timing, not adjustable.
Technical features
CDI
- Variable spark advance.
- System based on an uP STM8 - 8 bit microprocessor with a processing speed of 20MIPS (Million Instructions Per Second).
- Reduced processing time, improved spark advance precision and stability.
- Hardware architecture with improved immunity to interferences.
- Temperature class 105°C cable.
- Vector spark advance tables comprised of 24 breakpoints with linear interpolation.
High voltage coil
- Capacitive discharge.
- Ultra high efficiency.
- Constant 30,000 V discharge voltage up to 20,000 rpm.
Rotor-stator unit
- Small (Ø 58 mm) and light inner rotor.
- Permanent magnet rotor ensuring excellent performance.
- Unprecedented efficiency with minimum weight.
WARNING : with this kind of ignition the lighting set is disconnected.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7314398.pdf |
|---|
AEON MOTOR : AEON MOTOR COBRA 50 2T (AT70)
APRILIA : APRILIA SR 50 2T 1994->, APRILIA AMICO 50 2T, APRILIA AREA 51 50 2T LC, APRILIA GULLIVER 50 2T LC, APRILIA GULLIVER 50 2T, APRILIA MOJITO CUSTOM 50 2T, APRILIA MX 50 2T LC (MINARELLI AM 6), APRILIA RALLY 50 2T (MINARELLI), APRILIA SR NETSCAPER 50 2T LC (MINARELLI), APRILIA RALLY 50 2T LC (MINARELLI), APRILIA RS 50 2T LC (MINARELLI AM 3 > 6), APRILIA RS 50 2T LC euro 2 2006-> (DERBI D50B1), APRILIA RS4 50 2T LC euro 2 (DERBI), APRILIA RX 50 2T LC 2007-> (DERBI D50B0), APRILIA RX FACTORY 50 2T LC euro 4 2018-> (D50B0), APRILIA SCARABEO STREET 50 2T (PIAGGIO), APRILIA SR RACING 50 2T LC (MINARELLI), APRILIA SONIC 50 2T, APRILIA SONIC 50 2T LC, APRILIA SPORTCITY ONE STREET 50 2T euro 2, APRILIA SR (carb.) 50 2T LC 2004-> (PIAGGIO), APRILIA SR 50 2T <-1993, APRILIA SR REPLICA 50 2T LC <-1999, APRILIA SR MOTARD 50 2T euro 2, APRILIA SR R (carb.) 50 2T LC (PIAGGIO), APRILIA SR Street 50 2T LC euro 2, APRILIA SR STEALTH 50 2T LC (MINARELLI), APRILIA SX 50 2T LC 2007-> (DERBI D50B0), APRILIA SX 50 2T LC euro 4 2018-> (D50B0), APRILIA SX FACTORY 50 2T LC euro 4 2018-> (D50B0), APRILIA TUONO 50 2T LC (MINARELLI AM 6), APRILIA SR WWW 50 2T
BENELLI : BENELLI 491 SPORT 50 2T LC (MINARELLI), BENELLI 491 GT 50 2T (MINARELLI), BENELLI K2 50 2T, BENELLI K2 50 2T LC, BENELLI NAKED 50 2T
BETA : BETA ARK 50 2T, BETA ARK 50 2T LC, BETA EIKON 50 2T LC, BETA RR ENDURO 50 2T LC (MINARELLI AM 6), BETA RR ENDURO RACING 50 2T LC (MINARELLI AM 6), BETA RR ENDURO 50 2T LC euro 4 2019->2020 (MINARELLI AM 6), BETA RR ENDURO RACING 50 2T LC euro 4 2019->2020 (MINARELLI AM 6), BETA RR ENDURO SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6), BETA RR MOTARD 50 2T LC euro 4 2019->2020 (MINARELLI AM 6), BETA RR MOTARD SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6), BETA RR MOTARD TRACK 50 2T LC euro 4 2019->2020 (MINARELLI AM 6), BETA QUADRA 50 2T, BETA RR SUPERMOTARD 50 2T LC (MINARELLI AM 6), BETA RR SUPERMOTARD ALU 50 2T LC (MINARELLI AM 6)
BSV : BSV AX 50, BSV GZ 50
CPI : CPI HUSSAR 50 2T <-2002 (50 C), CPI OLIVER 50 2T <-2002 (50 C), CPI POPCORN 50 2T <-2002 (50 C)
DERBI : DERBI ATLANTIS - BULLET 50 2T 2003->, DERBI Senda DRD PRO R 50 2T LC (D50B0), DERBI Senda DRD PRO SM 50 2T LC (D50B0), DERBI Senda DRD RACING R - SM 50 2T LC (D50B0), DERBI Senda EVO SM 50 2T LC (D50B0), DERBI GPR NUDE 50 2T LC <-2005 (EBS050), DERBI GPR NUDE 50 2T LC 2006-> (D50B0), DERBI GPR RACING 50 2T LC <-2003 (EBE050 - EBS050), DERBI GPR RACING 50 2T LC 2004->2005 (EBS050), DERBI GPR RACING 50 2T LC 2006-> (D50B0), DERBI GP1 50 2T LC, DERBI GP1 OPEN 50 2T LC, DERBI GPR R 50 2T LC euro 2 2012->, DERBI GP1 REVOLUTION 50 2T LC, DERBI SENDA 50 2T LC (EBE050 - EBS050), DERBI Senda LIMITED SM 50 2T LC euro 4 2018-> (D50B0), DERBI VARIANT Sport 50 2T, DERBI Senda X-RACE R - X-RACE SM 50 2T LC (D50B0), DERBI Senda X-TREME R - X-TREME SM 50 2T LC (D50B0), DERBI Senda X-TREME SM 50 2T LC euro 4 2018-> (D50B0), DERBI Senda X-TREME R 50 2T LC euro 4 2018-> (D50B0), DERBI Senda RACING SM 50 2T LC euro 4 2018-> (D50B0)
DRR : DRR DRX 90 2T LC <-2015
FANTIC : FANTIC BIG WHEEL 50 2T, FANTIC CABALLERO 50 2T LC euro 4 2019-> (MINARELLI AM 6), FANTIC MOTARD CASA 50 2T LC euro 4 2019-> (MINARELLI AM 6), FANTIC MOTARD PERFORMANCE 50 2T LC euro 4 2019-> (MINARELLI AM 6)
GARELLI : GARELLI PONY 50 2T, GARELLI SR 50 2T
GILERA : GILERA DNA 50 2T LC, GILERA EASY MOVING 50 2T, GILERA GSM H@K 50 2T LC (DERBI EBE050), GILERA ICE 50 2T, GILERA RCR - SMT 50 2T LC (DERBI D50B0), GILERA RUNNER SP 50 2T LC <-2005, GILERA RUNNER SP 50 2T LC 2006-> (C451M), GILERA RUNNER 50 2T LC, GILERA STORM 50 2T, GILERA STALKER 50 2T, GILERA TYPHOON 50 2T, GILERA TYPHOON X 50 2T
HM : HM CR E DERAPAGE 50 2T LC (MINARELLI AM 6), HM CRE SIX Comp. 50 2T LC 2013-> (MINARELLI AM 6), HM DERAPAGE RR 11 50 2T LC (MINARELLI AM 6)
HUSQVARNA : HUSQVARNA CH RACING 50 2T LC (MINARELLI AM 6)
ITALJET : ITALJET BAZOOKA 50 2T, ITALJET DRAGSTER 50 2T LC, ITALJET JET SET 50 2T, ITALJET PISTA 2 50 2T, ITALJET PISTA 50 2T, ITALJET REPORTER 50, ITALJET SCOOP 50 2T
LEM : LEM FLASH 50, LEM GHIBLI 50, LEM TORNADO 50
MALAGUTI : MALAGUTI F10 50 2T, MALAGUTI F12-PHANTOM 50 2T, MALAGUTI F15 FIREFOX 50 2T LC, MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC, MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC euro 2, MALAGUTI F12-PHANTOM 50 2T LC, MALAGUTI F12 R LC 50 2T LC euro 2, MALAGUTI XSM - XTM 50 2T LC (MINARELLI AM 6), MALAGUTI YESTERDAY 50 2T
MBK : MBK BOOSTER 50 2T euro 0-1, MBK BOOSTER 50 2T euro 2 (A137E), MBK BOOSTER SPIRIT 50 2T euro 0-1, MBK EVOLIS 50 2T, MBK FIZZ 50 2T, MBK FLIPPER 50 2T, MBK FORTE 50 2T, MBK HOT CHAMP 50 2T, MBK MACH G 50 2T, MBK MACH G 50 2T LC, MBK BOOSTER NAKED 50 2T euro 2 (A137E), MBK NITRO 50 2T LC, MBK BOOSTER NG 50 2T euro 0-1, MBK BOOSTER NG 50 2T euro 2 (A137E), MBK OVETTO 50 2T, MBK BOOSTER ROCKET 50 2T euro 0-1, MBK BOOSTER ROCKET 50 2T euro 2 (A137E), MBK SORRISO 50 2T 1996->, MBK SORRISO 50 2T <-1995, MBK STUNT 50 2T euro 0-1, MBK STUNT 50 2T euro 2, MBK TARGET 50 2T, MBK X-LIMIT 50 2T LC (MINARELLI AM 6), MBK X-POWER 50 2T LC (MINARELLI AM 6)
MOTRON : MOTRON SYNCRO 50, MOTRON THUNDER'S 50
PEUGEOT : PEUGEOT XPS 50 2T LC (MINARELLI AM 6), PEUGEOT XR6 50 2T LC (MINARELLI AM 6), PEUGEOT XR7 50 2T LC (MINARELLI AM 6)
PIAGGIO : PIAGGIO DIESIS 50 2T, PIAGGIO NRG EXTREME 50 2T, PIAGGIO NRG EXTREME 50 2T LC, PIAGGIO FLY 50 2T, PIAGGIO FREE 50 2T, PIAGGIO LIBERTY 50 2T, PIAGGIO NRG MC2 50 2T LC <-1997, PIAGGIO NRG MC2 50 2T LC 1998->, PIAGGIO NRG 50 2T LC, PIAGGIO NRG MC3 DT 50 2T, PIAGGIO NRG MC3 DD 50 2T LC, PIAGGIO NTT 50 2T LC, PIAGGIO NRG Power DD 50 2T LC, PIAGGIO NRG Power DT 50 2T (C453M), PIAGGIO QUARTZ 50 2T LC, PIAGGIO SFERA RESTYLING 50 2T, PIAGGIO TYPHOON - Malossi PROTOTYPE 125 4T LC, PIAGGIO TYPHOON 50 2T 2007->2010, PIAGGIO TYPHOON 50 2T euro 2 2011->2017 (C421M), PIAGGIO ZIP Fast Rider 50 2T, PIAGGIO ZIP 50 2T 2000-> (C25EM), PIAGGIO ZIP 50 2T <-1999, PIAGGIO ZIP SP 50 2T LC 2001->, PIAGGIO ZIP SP 50 2T LC <-2000
RIEJU : RIEJU RS2 50 2T LC (MINARELLI AM 6)
SHERCO : SHERCO HRD 50 2T LC (MINARELLI AM 6)
VESPA : VESPA ET2 50 2T 2000->, VESPA ET2 50 2T <-1999, VESPA LX 50 2T, VESPA Primavera 50 2T euro 2 (C533M), VESPA S 50 2T euro 2 (C381M), VESPA Sprint 50 2T euro 2
YAMAHA : YAMAHA AEROX 50 2T LC euro 0-1, YAMAHA AEROX 50 2T LC euro 2, YAMAHA AXIS 50 2T, YAMAHA BREEZE 50 2T, YAMAHA BW'S 50 2T euro 0-1, YAMAHA BW'S 50 2T euro 2 (A137E), YAMAHA BW'S Original/Naked 50 2T euro 2 2010-> (A137E), YAMAHA BW'S NG 50 2T euro 0-1, YAMAHA BW'S NG 50 2T euro 2 (A137E), YAMAHA CRZ 50 2T, YAMAHA CT 50 2T, YAMAHA DT 50 R 50 2T LC euro 2 (MINARELLI AM 6), YAMAHA DT 50 X 50 2T LC euro 2 (MINARELLI AM 6), YAMAHA JOG ER 50 2T, YAMAHA JOG 50 2T, YAMAHA JOG R 50 2T, YAMAHA JOGRR 50 2T LC euro 2, YAMAHA JOG Z 50 2T, YAMAHA NEO'S 50 2T, YAMAHA SLIDER 50 2T, YAMAHA SPY 50 2T, YAMAHA TZR 50 2T LC (MINARELLI AM 6), YAMAHA VINO 50 2T, YAMAHA WHY 50 2T, YAMAHA ZEST 50 2T, YAMAHA ZUMA 50 2T
