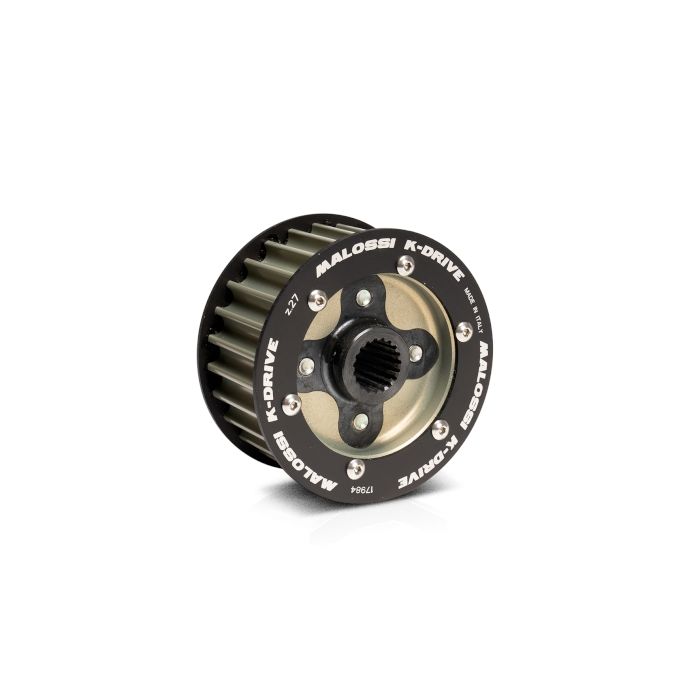

K-DRIVE PINION z27
317,92 €
Na zalogi Dostava: od 3 do 7 dni
SKU
6118804B
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.
K-DRIVE MALOSSI
Malossi K-DRIVE is a lighter gear ratio than the original
for the Yamaha Tmax 530 - 560.
Characterised by a sought-after appearance, the
K-DRIVE crowns and pinions have different ratios to
satisfy all the rider’s requirements.
Pinion
6118805B Z 25
6118804B Z 27
6118814 Z 28
6118815 Z 29
Crown
6118806B Z 60
TECHNICAL SPECIFICATIONS
The pinions are made from aluminium with hard oxidisation 25 microns deep. With this treatment Malossi has maintained a particularly light shape of the piece whilst guaranteeing high wear resistance. The central hub is made from a special steel alloy, not heat treated in order to avoid making it too hard and thus causing friction problems with the motor transmission shaft. The following tooth options are proposed z.: 24. 27. 28. 29.
| COUPLING TABLE K-DRIVE CROWN - PINION | |||
| Pinions | Crowns | Ratio | % Ratio |
| 25 | 60 | 2,400 | - 5.8% |
| 25 | 59 | 2,360 | - 4.0% |
| 25 | 58 | 2,320 | - 2.2% |
| 26 | 60 | 2,308 | - 1.7% |
| 25 | 57 | 2,280 | - 0.5% |
26 |
59 |
2,269 |
Original |
| 25 | 56 | 2,240 | + 1.3% |
| 26 | 58 | 2,231 | + 1.7% |
| 27 | 60 | 2,222 | + 2.1% |
| 27 | 59 | 2,185 | + 3.7% |
| 27 | 58 | 2,148 | + 5.3% |
| 28 | 60 | 2,143 | + 5.6% |
| 28 | 59 | 2,107 | + 7.1% |
| 28 | 58 | 2,071 | + 8.7% |
| 29 | 60 | 2,069 | + 8.8% |
| 28 | 57 | 2,036 | + 10.3% |
| 29 | 59 | 2,034 | + 10.3% |
| 28 | 56 | 2,000 | + 11.9% |
| 29 | 58 | 2,000 | + 11.9% |
| 29 | 57 | 1,966 | + 13.4% |
| 29 | 56 | 1,931 | + 14.9% |
Attention: the combinations shown in this table are
the only possible combinations, otherwise the toothed
belt would be either too short or too long.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
YAMAHA : YAMAHA T MAX 560 ie 4T LC euro 5 2020->2021 (J420E), YAMAHA T MAX 560 ie 4T LC euro 5 2022->, YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2020->2021 (J420E), YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2022->
