DELTA SYSTEM MHR (PIAGGIO - Clutch BELL Ø 107)
217,57 €
Na zalogi Dostava: od 3 do 7 dni
SKU
5214738
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.

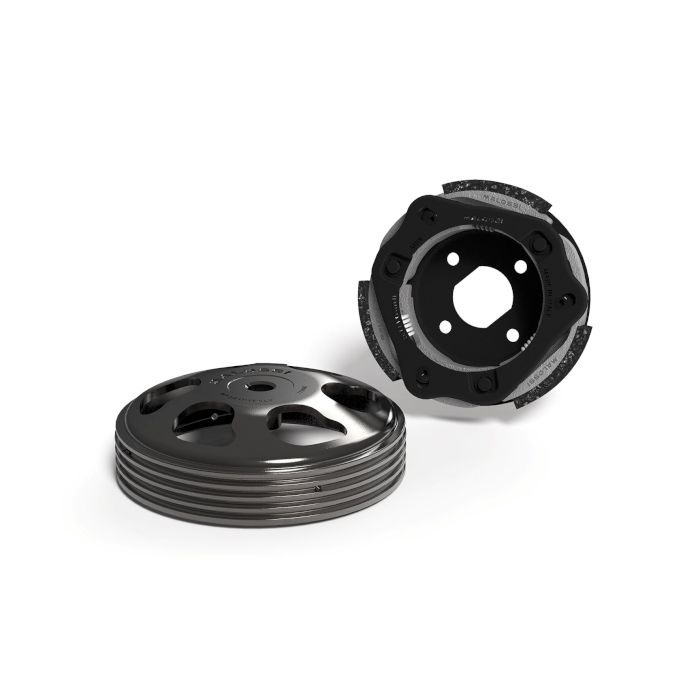

DELTA SYSTEM MHR
Centrifugal clutch system with clutch bell for scooter MHR
System comprises the famous :
- Patented adjustable clutch (Delta Clutch).
- In addition, the reinforced, anti-failure clutch bell (Wing Clutch Bell MHR) with cooling fins, dynamically balanced, designed for competitive and sport applications.
Delta Clutch
Delta Clutch is a clutch developed within the scooter racing circuits and in a short period has become a benchmark product, key to scooter performance.
The simplicity of the system quickly allows spring adjustment with regards to centrifugal force and the possibility of interchanging a spring with different K values. These values are listed in the Malossi catalogue.
Another option this system allows is position adjustment of the small mass which determines the pressure between friction material and clutch bell. In addition, this small mass is interchangeable with other masses of varying weights.
The complete system is patented to protect against shameless attempts to copy and falsify the product.
Delta has attained the recognition of many qualified tuners and the facts are the proof: used by all the racing teams and a vast amount of sport riders, resulting in a continuous increase in sales.
As always, Malossi constantly analyses its products during their operation and Delta is no exemption. It has been optimized by implementing small but important updates, maintaining Delta as a leading edge product.
We are very proud of the fact that Malossi clutches are asbestos free, however, much investment in research was needed in achieving this present level of quality, reliability, and especially selection of friction materials.
We can now affirm, with great certainty, that we possess an exclusive formula for producing a high temperature resistant material that does not alter its coefficient of friction due to prolonged operational stresses.
Wing Clutch Bell MHR
Technical Specifications
- Forged clutch bell, without welds, made of 39NiCrMo5 steel, nitrogen surface hardened with an antioxidant surface treatment.
- Machined finned reinforcement corona enhances heat dissipation, protecting the clutch's friction material, tested to over 20,000 RPM.
- Radial scraping holes added to the contact surface, sized and positioned to continually clean the clutch's friction material.
- Original system concept with openings designed to create dynamic ventilation and offering the possibility to adjust the internal clutch settings.
- Highest levels of finishes and extreme close tolerances maintained.
Due to the strong demand for these two products, we decided to offer them both in a single package.
This allows Malossi to supply two quality products with a cost savings for the customer.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/73 7643.pdf |
|---|
APRILIA : APRILIA MOJITO CUSTOM 50 2T, APRILIA SCARABEO 50 4T (PIAGGIO C373M), APRILIA SCARABEO 4V 50 4T euro 2, APRILIA SCARABEO CLASSIC 50 2T euro 4 2018-> (CA91M), APRILIA SCARABEO STREET 50 2T (PIAGGIO), APRILIA SCARABEO STREET 50 2T euro 4 2018-> (CA91M), APRILIA SPORTCITY ONE 50 4T (PIAGGIO C377M), APRILIA SPORTCITY ONE STREET 50 2T euro 2, APRILIA SR (carb.) 50 2T LC 2004-> (PIAGGIO), APRILIA SR R 50 2T LC euro 4 2018-> (PIAGGIO CA81M), APRILIA SR R FACTORY 50 2T LC (PIAGGIO C361M), APRILIA SR DITECH GP1 50 2T LC (PIAGGIO C361M), APRILIA SR MOTARD 50 2T euro 2, APRILIA SR MOTARD 50 2T euro 4 2018-> (CA41M), APRILIA SR R (carb.) 50 2T LC (PIAGGIO), APRILIA SR Street 50 2T LC euro 2, APRILIA SXR 50 ie 4T euro 5 2021-> (CD32M)
BAOTIAN : BAOTIAN ECO BIKE 50 4T (139 QMB), BAOTIAN REBEL - ROCKY - TANCO 9/12 50 4T
CAGIVA : CAGIVA CITY 50 2T
DERBI : DERBI ATLANTIS - BULLET 50 2T 2003->, DERBI GP1 50 2T LC, DERBI GP1 OPEN 50 2T LC, DERBI GP1 REVOLUTION 50 2T LC, DERBI VARIANT Sport 50 2T
GARELLI : GARELLI FLEXI' 50 4T euro 2 (1P139 QMB), GARELLI TIESSE FOUR 50 4T euro 2 (1P39QMB)
GILERA : GILERA DNA 50 2T LC, GILERA EASY MOVING 50 2T, GILERA ICE 50 2T, GILERA RUNNER PureJet 50 2T LC <-2005, GILERA RUNNER PureJet 50 2T LC 2006->, GILERA RUNNER SP 50 2T LC <-2005, GILERA RUNNER SP 50 2T LC 2006-> (C451M), GILERA RUNNER 50 2T LC, GILERA STORM 50 2T, GILERA STALKER 50 2T, GILERA TYPHOON 50 2T, GILERA TYPHOON X 50 2T
HUPPER : HUPPER MONTECARLO 30 50 4T (139QMB)
ITALJET : ITALJET JET SET 50 2T, ITALJET TORPEDO NEW 50 2T
KYMCO : KYMCO AGILITY R16 - RS 50 4T euro 2 (KL10B), KYMCO AGILITY R16 50 2T euro 2 (KF10B), KYMCO AGILITY R10/12 - RS 50 4T euro 2 (KL10B), KYMCO AGILITY R12 50 ie 4T euro 4 2019->, KYMCO AGILITY R16 + 50 2T euro 2 2016-> (KF10D), KYMCO AGILITY R16 + 50 4T euro 2 2017-> (KL10C), KYMCO AGILITY R16 + 50 ie 4T euro 4 2019->, KYMCO DINK 50 2T, KYMCO DINK 50 4T euro 2, KYMCO DINK 50 2T LC, KYMCO DJ Y 50 2T, KYMCO HEROISM 50 2T, KYMCO LIKE 50 4T euro 2 (KG10A), KYMCO PEOPLE 50 2T, KYMCO PEOPLE 50 4T euro 2, KYMCO PEOPLE S 50 4T euro 2 (BB10), KYMCO PEOPLE S 50 ie 4T euro 4 2019-> (KP10), KYMCO SENTO 50 4T euro 2, KYMCO SNIPER 50 2T, KYMCO SUPER 8 50 4T euro 2 (KL10), KYMCO SUPER 9 50 2T LC, KYMCO TOP BOY - COBRA 50 2T, KYMCO VITALITY 50 4T euro 2 (SG10), KYMCO SUPER 8 R 50 4T euro 5 2023-> (KP10G)
MALAGUTI : MALAGUTI CENTRO 50 4T euro 2 (C432M), MALAGUTI CIAK MASTER 50 4T euro 2, MALAGUTI DVD 50 4T (139 QMB)
PIAGGIO : PIAGGIO NRG Power 50 2T LC euro 4 2018->2020 (CA71M), PIAGGIO DIESIS 50 2T, PIAGGIO NRG EXTREME 50 2T, PIAGGIO NRG EXTREME 50 2T LC, PIAGGIO FLY 50 2T, PIAGGIO FLY 50 4T, PIAGGIO NEW FLY 4V 50 4T euro 2, PIAGGIO FREE 50 2T, PIAGGIO LIBERTY 50 2T, PIAGGIO LIBERTY iGet 50 ie 4T euro 3 2016->2017 (C541M), PIAGGIO LIBERTY iGet 50 ie 4T euro 4 2018->2020 (CA11M), PIAGGIO LIBERTY 3V iGet 50 ie 4T euro 5 2021-> (CD11M), PIAGGIO LIBERTY 50 4T, PIAGGIO LIBERTY 4V 50 4T euro 2, PIAGGIO NRG MC2 50 2T LC <-1997, PIAGGIO NRG MC2 50 2T LC 1998->, PIAGGIO NRG MC3 Purejet 50 2T LC, PIAGGIO NRG 50 2T LC, PIAGGIO NRG MC3 DT 50 2T, PIAGGIO NRG MC3 DD 50 2T LC, PIAGGIO NTT 50 2T LC, PIAGGIO NRG Power DD 50 2T LC, PIAGGIO NRG Power DT 50 2T (C453M), PIAGGIO NRG Power Purejet 50 2T LC, PIAGGIO QUARTZ 50 2T LC, PIAGGIO SFERA RESTYLING 50 2T, PIAGGIO ZIP S 3V iGet 50 ie 4T euro 5 2021->, PIAGGIO TYPHOON 50 2T 2007->2010, PIAGGIO TYPHOON 50 2T euro 2 2011->2017 (C421M), PIAGGIO TYPHOON 50 2T euro 4 2018-> (CA41M), PIAGGIO ZIP Fast Rider 50 2T, PIAGGIO ZIP 50 2T 2000-> (C25EM), PIAGGIO ZIP 3V iGet 50 ie 4T euro 4 2018->2020, PIAGGIO ZIP 3V iGet 50 ie 4T euro 5 2021->, PIAGGIO ZIP 50 4T, PIAGGIO ZIP SP 50 2T LC 2001->, PIAGGIO ZIP SP 50 2T LC <-2000
OVER : OVER B3 50 4T LC (LJ1P38MB)
PEUGEOT : PEUGEOT BUXY 50 2T, PEUGEOT ELYSEO 50 2T, PEUGEOT JET FORCE TSDI 50 2T LC (HL 1), PEUGEOT JET FORCE C-TECH 50 2T LC, PEUGEOT LOOXOR 50 2T, PEUGEOT LOOXOR TSDI 50 2T, PEUGEOT LUDIX 50 2T, PEUGEOT LUDIX BLASTER 50 2T LC (HL 2), PEUGEOT METAL-X 50 2T, PEUGEOT BUXY RS 50 2T, PEUGEOT SPEEDFIGHT 2 50 2T LC 2004->, PEUGEOT SPEEDFIGHT 3 50 2T (B1E 40 QMB), PEUGEOT SPEEDFIGHT 3 50 2T LC, PEUGEOT SPEEDFIGHT 50 2T, PEUGEOT SPEEDFIGHT 50 2T LC, PEUGEOT SPEEDAKE 50 2T, PEUGEOT SQUAB 50 2T, PEUGEOT SV GEO 50 2T, PEUGEOT TREKKER 50 2T, PEUGEOT V-CLIC 50 4T, PEUGEOT VIVACITY 50 2T, PEUGEOT VIVACITY COMPACT 50 2T (FB2FP), PEUGEOT X-FIGHT 50 2T, PEUGEOT X-FIGHT 2 50 2T LC 2004->, PEUGEOT X-FIGHT 50 2T LC, PEUGEOT ZENITH 50 2T
SYM : SYM JET BasiX 50 2T euro 2, SYM JET SportX-S - SportX-R 50 2T euro 2 (T5C/1), SYM SYMPLY 50 4T euro 2 (XS1P39QMB)
VESPA : VESPA ET4 50 4T, VESPA ET2 50 2T 2000->, VESPA ET2 50 2T <-1999, VESPA LX 50 2T, VESPA LX 50 4T, VESPA LX 4V 50 4T euro 2, VESPA Primavera 3V iGet 50 ie 4T euro 4 2018->2020 (CA03M), VESPA Primavera 3V iGet 50 ie 4T euro 5 2021-> (CD01M), VESPA Primavera 50 2T euro 2 (C533M), VESPA Primavera 4V 50 4T euro 2 (C532M), VESPA S 50 2T euro 2 (C381M), VESPA S 4V 50 4T euro 2 (C386M), VESPA SPRINT 3V IGet 50 ie 4T euro 4 2018->2020 (CA01M), VESPA SPRINT 3V IGet 50 ie 4T euro 5 2021-> (CD01M), VESPA Sprint 50 2T euro 2, VESPA Sprint 4V 50 4T euro 2
WT MOTORS : WT MOTORS BILBAO 50 4T (PEDA 139QMB)
adjustable automatic delta clutch for clutch bell ø 107 : 527880
wing clutch bell mhr internal ø 107 mm and weight 539 grams for piaggio engines : 7714147
