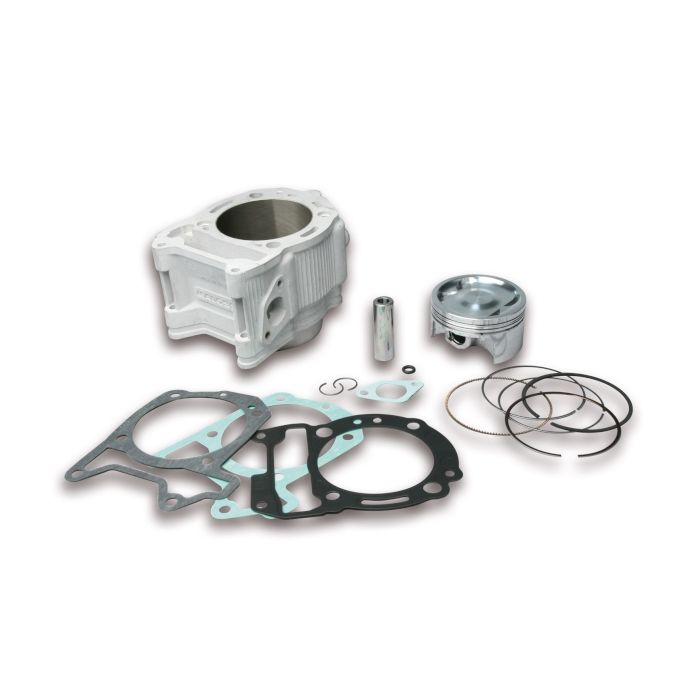

ALUMIN-CYLINDER Ø 75,5 pin Ø 16 H2O SCOOTER 300 4-stroke
450,86 €
Na zalogi Dostava: od 3 do 7 dni
SKU
3113958
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.
TECHNICAL SPECIFICATIONS
Cylinder
- Bore Ø 75.5 mm;
- Stroke 63 mm;
- Displacement 282;
- Compression ratio 12.5:1.
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
- Machining: on machine tools with high precision numerical control.
- Cylinder-piston connection with an allowance of 0.05 mm.
- Recalculated and upgraded heat exchange surfaces.
Piston
- Ultra compact with 3 rings.
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
- Machining on machine tools with numerical control.
- Lightened and reinforced.
- Upgraded heat exchange surfaces.
Piston rings
- Special rings with high sliding ease and very high mechanical resistance.
- I° ring compression in nitrided and chromium steel.
- II° special cast iron ring.
- Three - piece scraper ring made of chromiumplated special steel alloy.
NB: can be assembled with V4 HEAD Code = 3813273
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7311473.pdf |
|---|
APRILIA : APRILIA ATLANTIC S 300 ie 4T LC euro 3 (PIAGGIO), APRILIA SCARABEO Special 300 ie 4T LC euro 3 (PIAGGIO M28RM), APRILIA SPORTCITY CUBE 300 ie 4T LC euro 3 (LEADER M28LM), APRILIA SR MAX 300 ie 4T LC euro 3
DERBI : DERBI RAMBLA i 300 ie 4T LC euro 3 (PIAGGIO)
GILERA : GILERA NEXUS 300 ie 4T LC euro 3
PEUGEOT : PEUGEOT GEOPOLIS R/GT 300 ie 4T LC euro 3, PEUGEOT GeoRS 300 ie 4T LC euro 3 (PIAGGIO M28MM)
PIAGGIO : PIAGGIO BEVERLY 300 ie 4T LC euro 3 <-2009 (M28MM), PIAGGIO BEVERLY 300 ie 4T LC euro 3 2010->2016 (M692M), PIAGGIO BEVERLY 300 ie 4T LC euro 4 2017->2020 (MA21M), PIAGGIO BEVERLY TOURER 300 ie 4T LC euro 3, PIAGGIO CARNABY 300 ie 4T LC euro 3 (QUASAR), PIAGGIO MP3 300 ie 4T LC euro 4 2016->2018 (TA11M), PIAGGIO MP3 300 ie 4T LC euro 3 2009->2014 (QUASAR M634M), PIAGGIO MP3 300 ie 4T LC euro 3 2014->2016 (M862M), PIAGGIO MP3 YOURBAN 4V 300 ie 4T LC euro 3 2011->2016, PIAGGIO MP3 YOURBAN SPORT 4V 300 ie 4T LC euro 4 2017->2018, PIAGGIO X7 EVO 300 ie 4T LC euro 3 (QUASAR)
ROYAL ALLOY : ROYAL ALLOY GP 300 LC
VESPA : VESPA SEI GIORNI 300 ie 4T LC euro 4 2018->, VESPA GTS Super 300 ie 4T LC euro 3 <-2013 (QUASAR M454M), VESPA GTS Super 300 ie 4T LC euro 3 2014->2016 (QUASAR M454M), VESPA GTS Super 300 ie 4T LC euro 4 2017->2018 (QUASAR M458M-M45EM), VESPA GTS 300 ie 4T LC euro 4 2017->2018 (MA33M), VESPA GTV 300 ie 4T LC euro 3 (QUASAR)
complete cylinder gasket set ø 75,5 h2o 4 stroke : 1113960B
pin ø 16x09x51 for piston : 2314624
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size 0 : 3414323
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size 00 : 3414323.00
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size a : 3414323.A0
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size aa : 3414323.AA
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size b : 3414323.B0
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size bb : 3414323.BB
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size c : 3414323.C0
4t ø 75.5 piston size 0 with pin ø 16 and semitrapezoidal /oil rings 3 size cc : 3414323.CC
piston ring set 4t ø 75,5 : 3513917
pin clip ø 16x1.2 c-shaped : 364452
