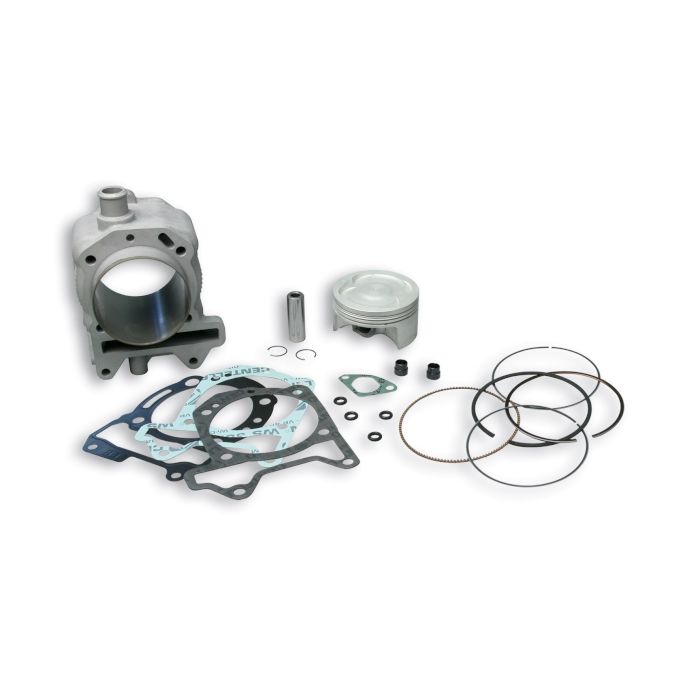

ALUMIN-CYLINDER Ø 75,5 H2O SCOOTER 125>2004-stroke
450,86 €
Na zalogi Dostava: od 3 do 7 dni
SKU
3113955
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.
TECHNICAL SPECIFICATIONS
Cylinder
- Bore Ø 75.5 mm;
- Stroke 48,6 mm;
- Displacement 218;
- Compression ratio 12.5:1.
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
- Machining: on machine tools with high precision numerical control.
- Cylinder-piston connection with an allowance of 0.05 mm.
- Recalculated and upgraded heat exchange surfaces.
Piston
- Ultra compact with 3 rings.
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
- Machining on machine tools with numerical control.
- Lightened and reinforced.
- Upgraded heat exchange surfaces.
Piston rings
- Special rings with high sliding ease and very high mechanical resistance.
- I° ring compression in nitrided and chromium steel.
- II° special cast iron ring.
- Three - piece scraper ring made of chromiumplated specialsteel alloy.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7311473.pdf |
|---|
APRILIA : APRILIA ATLANTIC - Arrecife 125 4T LC, APRILIA ATLANTIC - Arrecife 200 4T LC (PIAGGIO M234M), APRILIA SCARABEO 125 4T LC (PIAGGIO), APRILIA SPORTCITY 125 4T LC (PIAGGIO M281M), APRILIA SPORTCITY 200 4T LC euro 3 (PIAGGIO)
DERBI : DERBI GP1 125 4T LC euro 2-3, DERBI RAMBLA 125 4T LC euro 3 (PIAGGIO M287M)
GILERA : GILERA DNA 125 4T LC, GILERA DNA 180 4T LC, GILERA NEXUS 125 4T LC euro 3 2007->2008 (M355M), GILERA RUNNER ST 125 4T LC euro 3, GILERA RUNNER ST 200 4T LC euro 3, GILERA RUNNER VX 125 4T LC 2006->, GILERA RUNNER VX 125 4T LC <-2005, GILERA RUNNER VXR 180 4T LC, GILERA RUNNER VXR 200 4T LC <-2005, GILERA RUNNER VXR 200 4T LC 2006->
MALAGUTI : MALAGUTI PHANTOM MAX 200 4T LC (PIAGGIO), MALAGUTI MADISON 180 4T LC (PIAGGIO), MALAGUTI MADISON 200 4T LC (PIAGGIO), MALAGUTI MADISON 3 125 4T LC (PIAGGIO)
PIAGGIO : PIAGGIO BEVERLY 125 4T LC <-2009, PIAGGIO BEVERLY 200 4T LC, PIAGGIO CARNABY 125 4T LC euro 3 (LEADER M28FM), PIAGGIO CARNABY 200 4T LC euro 3 (LEADER M601M), PIAGGIO SUPER HEXAGON GTX 125 4T LC, PIAGGIO SUPER HEXAGON GTX 180 4T LC, PIAGGIO MP3 125 4T LC euro 3 (LEADER), PIAGGIO X7 125 4T LC euro 3 (LEADER), PIAGGIO X8 125 4T LC euro 2-3 (LEADER), PIAGGIO X8 200 4T LC, PIAGGIO X9 4V 125 4T LC, PIAGGIO X9 4V Evolution 125 4T LC euro 2-3, PIAGGIO X9 AMALFI 180 4T LC, PIAGGIO X9 200 4T LC, PIAGGIO XEvo 125 4T LC euro 3 (LEADER)
VESPA : VESPA Granturismo L - GT 125 4T LC (LEADER), VESPA GTV 125 4T LC (LEADER), VESPA Granturismo L - GT 200 4T LC (M312M), VESPA GTS 125 4T LC euro 3 <-2013 (M315M)
complete cylinder gasket set ø 75,5 h2o 4 stroke : 1113960B
pin ø 15x08x44 for piston : 2314473
centring bush kit : 2612042
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size 0 : 3414314
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size 00 : 3414314.00
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size a : 3414314.A0
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size aa : 3414314.AA
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size b : 3414314.B0
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size bb : 3414314.BB
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size c : 3414314.C0
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size d : 3414314.D0
piston ring set 4t ø 75,5 : 3513917
pin clip ø 15x1 c-shaped : 3611398B
