ALUMINIUM CYLINDER Ø 61 PIN Ø 14 H2O 4-STROKE
413,32 €
Na zalogi Dostava: od 3 do 7 dni
SKU
3111588
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.

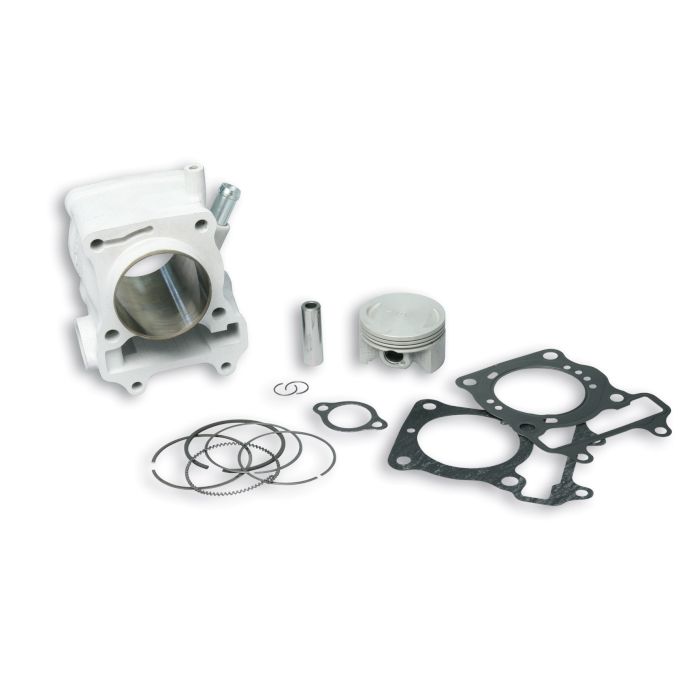

COMPLETE CYLINDER 4-STROKE
TECHNICAL FEATURES
Cylinder
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
- Machining: on machine tools with high precision numerical control.
- Cylinder-piston connection with an allowance of 0.05 mm.
- Recalculated and upgraded heat exchange surfaces.
Piston
- Ultra compact with 3 rings.
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
- Machining on machine tools with numerical control.
- Lightened and reinforced.
- Upgraded heat exchange surfaces.
Piston rings
- Compression - special rings with high sliding ease and very high mechanical resistance, in chromium-plated S10 spheroidal cast-iron.
- 1st scraper - ring in chromium-plated S10 spheroidal cast iron.
- 2nd three - piece scraper ring made of chromium-plated steel alloy.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7311627.pdf |
|---|
BENELLI : BENELLI CAFFèNERO 150 4T LC euro 3 (QJ158MJ)
HONDA : HONDA @ 150 4T LC, HONDA DYLAN 150 4T LC, HONDA PANTHEON 150 ie 4T LC, HONDA PS 150 ie 4T LC euro 3, HONDA SH - SH Scoopy 150 4T LC, HONDA SH I 150 ie 4T LC euro 3 2009-> (KF08E), HONDA SH I 150 ie 4T LC <-2008, HONDA S-Wing 150 ie 4T LC euro 3 (KF06E)
KEEWAY : KEEWAY OUTLOOK 150 4T LC (QJ158MJ)
complete cylinder gasket set ø 61 for original cylinder head : 1112704B
pin ø 14x08x47 for piston : 2312422
4t ø 61 piston size 0 with pin ø 14 and 3 rectangular rings size 0 : 3411604
4t ø 61 piston size 0 with pin ø 14 and 3 rectangular rings size 00 : 3411604.00
4t ø 61 piston size 0 with pin ø 14 and 3 rectangular rings size a : 3411604.A0
4t ø 61 piston size 0 with pin ø 14 and 3 rectangular rings size aa : 3411604.AA
4t ø 61 piston size 0 with pin ø 14 and 3 rectangular rings size b : 3411604.B0
4t ø 61 piston size 0 with pin ø 14 and 3 rectangular rings size bb : 3411604.BB
4t ø 61 piston size 0 with pin ø 14 and 3 rectangular rings size c : 3411604.C0
4t ø 61 piston size 0 with pin ø 14 and 3 rectangular rings size cc : 3411604.CC
4t ø 61 piston size 0 with pin ø 14 and 3 rectangular rings size d : 3411604.D0
piston ring set 4t ø 61 : 3511620
c- piston pin clip ø 14x1 : 3611263
