ALUMIN-CYLINDER KIT Ø 50 H2O MHR REP.
402,55 €
Na zalogi Dostava: od 3 do 7 dni
SKU
3112985
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.
MHR REPLICA CYLINDER KIT
The MHR Replica line of cylinder was created especially for the
International Scooter Trophy - 70cc Automatic Class.
These cylinder kits
were designed to guarantee maximum performance in this category, while at
the same time assuring extremely long product life.
In order to guarantee these special characteristics, Malossi MHR Replica
cylinder kit have pistons with two chrome-plated rectangular segmants and
a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm)
at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm.
The MHR line is the results of Malossi's many years of experience in
European and National competitions.

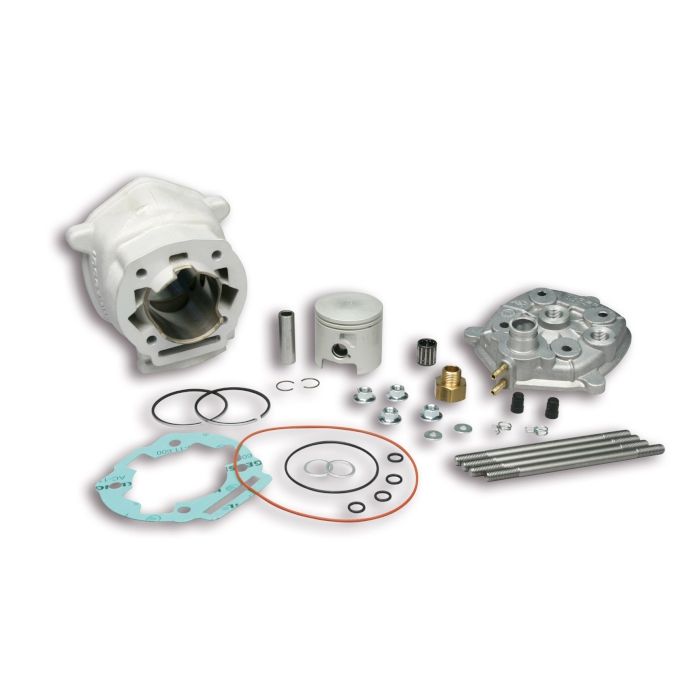

These new cylinder kits are composed
principally of cylinder - piston - ring - head.
Technical data
- Material: alluminium
- Cooling: liquid
- Bore: 50 mm
- Stroke: 40 mm
- Capacity 78,5
- Compression ratio: 13.1:1
- Timing system : 5 ports
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/73 4894.pdf |
|---|
APRILIA : APRILIA RS 50 2T LC euro 2 2006-> (DERBI D50B1), APRILIA RS 50 2T LC euro 4 2018-> (D50B0), APRILIA RS4 50 2T LC euro 2 (DERBI), APRILIA RX 50 2T LC 2007-> (DERBI D50B0), APRILIA RX FACTORY 50 2T LC euro 4 2018-> (D50B0), APRILIA SX 50 2T LC 2007-> (DERBI D50B0), APRILIA SX 50 2T LC euro 4 2018-> (D50B0), APRILIA SX FACTORY 50 2T LC euro 4 2018-> (D50B0)
DERBI : DERBI Senda DRD PRO R 50 2T LC (D50B0), DERBI Senda DRD PRO SM 50 2T LC (D50B0), DERBI Senda DRD RACING R - SM 50 2T LC (D50B0), DERBI Senda EVO SM 50 2T LC (D50B0), DERBI GPR NUDE 50 2T LC 2006-> (D50B0), DERBI GPR RACING 50 2T LC 2006-> (D50B0), DERBI GPR R 50 2T LC euro 2 2012->, DERBI Senda LIMITED SM 50 2T LC euro 4 2018-> (D50B0), DERBI Senda X-RACE R - X-RACE SM 50 2T LC (D50B0), DERBI Senda X-TREME R - X-TREME SM 50 2T LC (D50B0), DERBI Senda X-TREME SM 50 2T LC euro 4 2018-> (D50B0), DERBI Senda X-TREME R 50 2T LC euro 4 2018-> (D50B0), DERBI Senda RACING SM 50 2T LC euro 4 2018-> (D50B0)
GILERA : GILERA DRIFTING 50 2T LC euro 4 2018-> (D50B0), GILERA RCR - SMT 50 2T LC (DERBI D50B0), GILERA RCR 50 2T LC euro 4 2018-> (D50B0), GILERA SMT 50 2T LC euro 4 2018-> (D50B0)
2 plugs ø int. 4,8 mm with straps : 1012877
complete cylinder gasket set ø 50 (for derbi d50b0/1 engines) : 1112982
bolt kit with bleed holder : 1913105
pin ø 12x08x40 for piston : 234673
aluminiumcylinder ø 50 h2o mhr replica : 3112984
2t ø 50 piston size 0 with pin ø 12 and 2 rectangular rings size 0 : 3411695
2t ø 50 piston size 0 with pin ø 12 and 2 rectangular rings size a : 3411695.A0
2t ø 50 piston size 0 with pin ø 12 and 2 rectangular rings size b : 3411695.B0
2t ø 50 piston size 0 with pin ø 12 and 2 rectangular rings size c : 3411695.C0
2t ø 50 piston size 0 with pin ø 12 and 2 rectangular rings size d : 3411695.D0
2 rectangular kdn5 piston rings ø 50x1,5 : 3515410
pin clip ø 12x1 c-shaped : 364450
h2o aluminium cylinder head ø 50 : 3812229
roller bearing ø 12x15x16,6 : 6612961B
