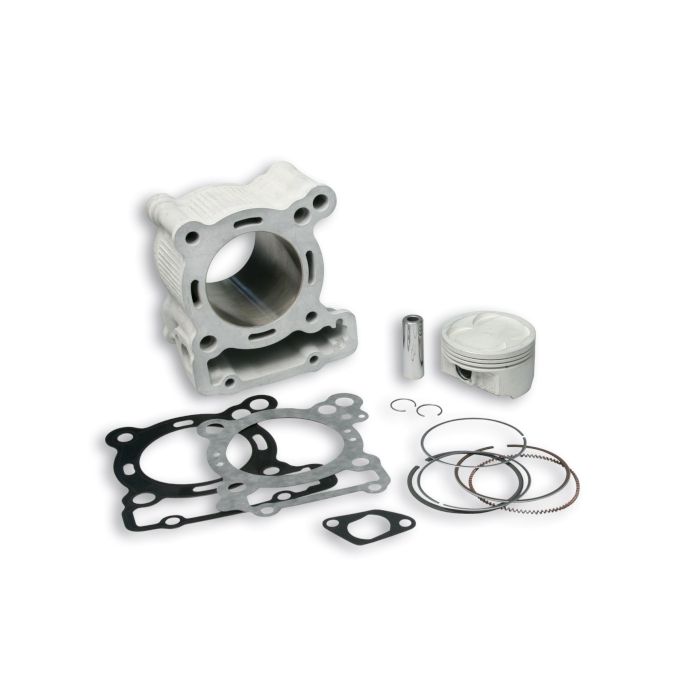

ALUM-CYL. Ø 67 pin Ø 15 H2O 4-stroke

540,72 €
Na zalogi Dostava: od 3 do 7 dni
SKU
3115326
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.
main product photo

Technical features

Cylinder

  • 125 cc:
    1. Bore: Ø 67 mm
    2. Stroke: 47 mm
    3. Displacement: 166
  • 200 cc:
    1. Bore: Ø 67 mm
    2. Stroke: 58 mm
    3. Displacement: 200
  • Compression ratio: 12:1
  • Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
  • Machining: on machine tools with high precision numerical control.
  • Cylinder-piston connection with an allowance of 0.05 mm.
  • Recalculated and upgraded heat exchange surfaces.

Piston

  • Ultra compact with 3 rings.
  • Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
  • Machining on machine tools with numerical control.
  • Lightened and reinforced.
  • Upgraded heat exchange surfaces.

Piston rings

  • Special rings with high sliding ease and very high mechanical resistance.
  • I° ring compression in nitrided and chromium steel.
  • II° special cast iron ring.
  • Three - piece scraper ring made of chromium-plated special steel alloy.

 To be installed exclusively with Force Master 2.1 control unit 5519412
  APRILIA SRS 125 ie 4T LC euro 5 2021->
  APRILIA RS GP Replica 125 ie 4T LC euro 5 2021->
  APRILIA RX 125 ie 4T LC euro 5 2021->
  APRILIA SX 125 ie 4T LC euro 5 2021-> (M546M)
  APRILIA TUONO 125 ie 4T LC euro 5 2021->

 To be installed exclusively with Force Master 2.1 control unit 5519542
  APRILIA RS4 125 ie 4T LC euro 3
  APRILIA SRS 125 ie 4T LC euro 4 2019->2020 (M545M)
  APRILIA RS GP Replica 125 ie 4T LC 4 2019->2020
  APRILIA RX 125 ie 4T LC euro 4 2019->2020
  APRILIASX 125 ie 4T LC euro 4 2018->2020 (M546M)
  APRILIA TUONO 125 ie 4T LC euro 4 2019->2020)
  DERBI Senda DRD 4V R - SM 125 ie 4T LC euro 3

 To be installed exclusively with Force Master 2.1 control unit 5519437
  ITALJET DRAGSTER 125 4T LC euro 5 2021-> (JC1P 58 MI-3)

 To be installed exclusively with Force Master 2.1 control unit 5519720
  ITALJET DRAGSTER 200 4T LC euro 5 2021-> (JC1P63ML-4B)

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

Več informacij
Več informacij
mallosi product manuals https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7315325.pdf
Models

APRILIA : APRILIA RS4 125 ie 4T LC euro 3, APRILIA RS 125 ie 4T LC euro 4 2019->2020 (M545M), APRILIA RS 125 ie 4T LC euro 5 2021->, APRILIA RS GP Replica 125 ie 4T LC euro 4 2019->2020, APRILIA RS GP Replica 125 ie 4T LC euro 5 2021->, APRILIA RX 125 ie 4T LC euro 4 2019->2020, APRILIA RX 125 ie 4T LC euro 5 2021->, APRILIA SX 125 ie 4T LC euro 4 2018->2020 (M545M), APRILIA SX 125 ie 4T LC euro 5 2021-> (M546M), APRILIA TUONO 125 ie 4T LC euro 4 2019->2020, APRILIA TUONO 125 ie 4T LC euro 5 2021->

DERBI : DERBI Senda DRD 4V R - SM 125 ie 4T LC euro 3, DERBI GPR 4V 125 4T LC euro 3, DERBI MULHACÉN CAFE 4V 125 4T LC euro 3, DERBI TERRA - TERRA Adventure 4V 125 4T LC euro 3

ITALJET : ITALJET DRAGSTER 125 ie 4T LC euro 5 2021-> (JC1P58MI-3), ITALJET DRAGSTER 200 4T LC euro 5 2021-> (JC1P63ML-4B)

ROYAL ALLOY : ROYAL ALLOY GP 200 LC

SCOMADI : SCOMADI TT 200 LC

Spare parts

complete cylinder gasket set ø 67 for original cylinder head : 1119298B

pin ø 15x08x46 for piston : 2312423

piston ø 67 pin ø 15 rect./oil rings 3 0 : 3415093

piston ø 67 pin ø 15 rect./oil rings 3 00 : 3415093.00

piston ø 67 pin ø 15 rect./oil rings 3 a : 3415093.A0

piston ø 67 pin ø 15 rect./oil rings 3 aa : 3415093.AA

piston ø 67 pin ø 15 rect./oil rings 3 b : 3415093.B0

piston ø 67 pin ø 15 rect./oil rings 3 bb : 3415093.BB

piston ø 67 pin ø 15 rect./oil rings 3 c : 3415093.C0

piston ø 67 pin ø 15 rect./oil rings 3 cc : 3415093.CC

piston ring set 4t ø 67 : 3511291

pin clip ø 15x1 c-shaped : 3611398B
