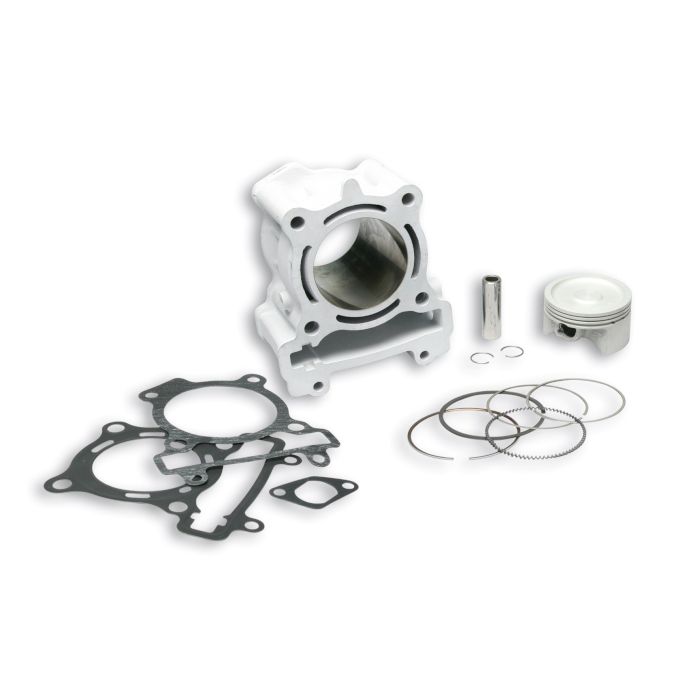

ALUM-CYL. Ø 63 pin Ø 14 H2O I-TECH 4-stroke
412,36 €
Na zalogi Dostava: od 3 do 7 dni
SKU
3114852
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.
TECHNICAL FEATURES
Cylinder
- Bore: Ø 63 mm
- Stroke: 58.6 mm
- Displacement: 182.58 cc
- Compression ratio: 10.6:1
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances
- Machining: on machine tools with high precision numerical control
- Cylinder-piston connection with an allowance of 0.05 mm
- Recalculated and upgraded heat exchange surfaces
Piston
- Ultra compact with 3 rings
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces
- Machining on machine tools with numerical control
- Lightened and reinforced
- Upgraded heat exchange surfaces
Piston rings
- Special rings with high sliding ease and very high mechanical resistance
- I° ring compression in nitrided and chromium steel
- II° special cast iron ring
- Three piece scraper ring made of chromium-plated special steel alloy
To be installed exclusively with Force Master 2.1 control unit 5519524
YAMAHA X MAX 125 ie 4T LC euro 4 2017-> (E3V9E)
YAMAHA X MAX 125 ie 4T LC euro 4 2018-> (E31LE)
To be installed exclusively with Force Master 2.1 control unit 5519529
YAMAHA MT- 125 ie 4T LC euro 3 <-2018 (E3J4E)
YAMAHA MT- 125 ie 4T LC euro 4 2019->2020 (E3W1E)
YAMAHA WR R-X 125 ie 4T LC euro 3 (E3D9E)
YAMAHA YZF-R 125 ie 4T LC euro 3 <-2013
YAMAHA YZF-R 125 ie 4T LC euro 3 2014->2018
To be installed exclusively with Force Master 2.1 control unit 5519537
MBK CITYLINER 125 ie 4T LC euro 3
MBK SKYCRUISER 125 ie 4T LC euro 3
YAMAHA X CITY 125 ie 4T LC euro 3 (E3A5E)
YAMAHA X MAX 125 ie 4T LC euro 3 <-2008
YAMAHA X MAX 125 ie 4T LC euro 3 2009->2013
YAMAHA X MAX 125 ie 4T LC euro 3 2014->2016 (E3M1E)
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7314852.pdf |
|---|
BETA : BETA RR ENDURO 125 4T LC euro 3, BETA RR MOTARD 125 4T LC euro 3 (WR 172)
FANTIC : FANTIC CABALLERO 125 4T LC euro 3, FANTIC CABALLERO SCRAMBLER 125 4T LC euro 4 2019-> (WR4)
HM : HM CR ME-F X 125 4T LC (WR125-EØ12)
HUSQVARNA : HUSQVARNA SMS 4 125 4T LC euro 3 (WR 172)
MBK : MBK CITYLINER 125 ie 4T LC euro 3, MBK SKYCRUISER 125 ie 4T LC euro 3
MH : MH RX R 125 4T LC euro 3 (WR*031)
RIEJU : RIEJU MARATHON PRO Off-Road/SM 125 4T LC euro 3 (WR 082)
YAMAHA : YAMAHA MT- 125 ie 4T LC euro 3 <-2018 (E3J4E), YAMAHA MT- 125 ie 4T LC euro 4 2019->2020 (E3W1E), YAMAHA WR R-X 125 ie 4T LC euro 3 (E3D9E), YAMAHA X CITY 125 ie 4T LC euro 3 (E3A5E), YAMAHA X MAX 125 ie 4T LC euro 3 <-2008, YAMAHA X MAX 125 ie 4T LC euro 3 2014->2016 (E3M1E), YAMAHA X MAX 125 ie 4T LC euro 4 2017-> (E3V9E), YAMAHA X MAX 125 ie 4T LC euro 4 2018->2020 (E31LE), YAMAHA X MAX 125 ie 4T LC euro 3 2009->2013, YAMAHA YZF-R 125 ie 4T LC euro 3 <-2013, YAMAHA YZF-R 125 ie 4T LC euro 3 2014->2018
complete cylinder gasket set ø 63 h2o i-tech 4 stroke : 1113280B
pin ø 14x08x47 for piston : 2312422
4t ø 63 piston size 0 with pin ø 14 and 3 rectangular rings size 0 : 3413216
4t ø 63 piston size 0 with pin ø 14 and 3 rectangular rings size 00 : 3413216.00
4t ø 63 piston size 0 with pin ø 14 and 3 rectangular rings size a : 3413216.A0
4t ø 63 piston size 0 with pin ø 14 and 3 rectangular rings size aa : 3413216.AA
4t ø 63 piston size 0 with pin ø 14 and 3 rectangular rings size b : 3413216.B0
4t ø 63 piston size 0 with pin ø 14 and 3 rectangular rings size bb : 3413216.BB
4t ø 63 piston size 0 with pin ø 14 and 3 rectangular rings size c : 3413216.C0
4t ø 63 piston size 0 with pin ø 14 and 3 rectangular rings size cc : 3413216.CC
piston ring set 4t ø 63 : 3518852
c- piston pin clip ø 14x1 : 3611263
