ALUMINIUMCILINDERKIT Ø 75,5 PIN Ø 15 H2O 4-STROKE
1.065,89 €
Na zalogi Dostava: od 3 do 7 dni
SKU
3117542
Datumi dostave so informativne narave. Pri dostavi lahko prihaja do zamud na katero nimamo vpliva.

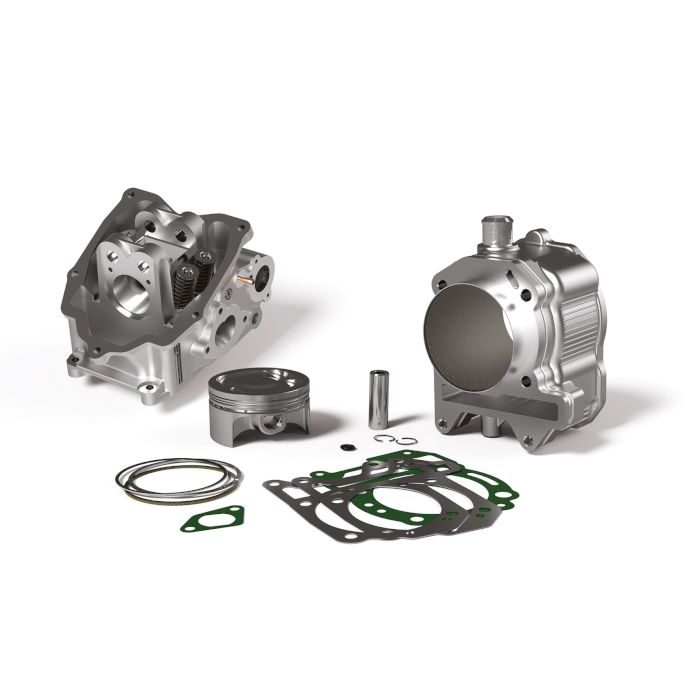

COMPLETE CYLINDER 4-STROKE
TECHNICAL FEATURES
Cylinder
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
- Machining: on machine tools with high precision numerical control.
- Cylinder-piston connection with an allowance of 0.05 mm.
- Recalculated and upgraded heat exchange surfaces.
Piston
- Ultra compact with 3 rings.
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
- Machining on machine tools with numerical control.
- Lightened and reinforced.
- Upgraded heat exchange surfaces.
Piston rings
- Compression - special rings with high sliding ease and very high mechanical resistance, in chromium-plated S10 spheroidal cast-iron.
- 1st scraper - ring in chromium-plated S10 spheroidal cast iron.
- 2nd three - piece scraper ring made of chromium-plated steel alloy.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7317542.pdf |
|---|
APRILIA : APRILIA ATLANTIC - Arrecife 250 4T LC (PIAGGIO M237M), APRILIA SCARABEO 250 4T LC (PIAGGIO M285M), APRILIA SCARABEO Light 250 ie 4T LC 2007->, APRILIA SPORTCITY 250 ie 4T LC euro 3 (PIAGGIO M288M)
BENELLI : BENELLI ADIVA AD 250 4T LC euro 2
DERBI : DERBI GP1 250 4T LC euro 2-3, DERBI RAMBLA 250 ie 4T LC euro 3
GILERA : GILERA NEXUS 250 ie 4T LC euro 3
MALAGUTI : MALAGUTI MADISON RS 250 4T LC (PIAGGIO M237M), MALAGUTI MADISON 3 250 4T LC (PIAGGIO), MALAGUTI PHANTOM MAX 250 4T LC (PIAGGIO M361M)
PEUGEOT : PEUGEOT GEOPOLIS 250 ie 4T LC euro 3, PEUGEOT SATELIS 250 4T LC euro 3
PIAGGIO : PIAGGIO BEVERLY 250 4T LC euro 1-2 (M285M), PIAGGIO BEVERLY S 250 ie 4T LC euro 3, PIAGGIO BEVERLY 250 ie 4T LC euro 3, PIAGGIO MP3 250 ie 4T LC euro 3 (QUASAR M472M), PIAGGIO X7 250 ie 4T LC euro 3 (QUASAR M622M), PIAGGIO X8 250 4T LC euro 2, PIAGGIO X8 250 ie 4T LC euro 3 (QUASAR), PIAGGIO X9 Evolution 250 4T LC (M237M), PIAGGIO XEvo 250 ie 4T LC euro 3 (QUASAR)
VESPA : VESPA GTS 250 ie 4T LC, VESPA GTV 250 ie 4T LC
complete cylinder gasket set ø 75,5 h2o 4 stroke : 1113960B
connection kit for h2o cylinder head : 2014288
pin ø 15x08x44 for piston : 2314473
aluminium complete cylinder ø 75,5 pin ø 15 h2o 4-stroke : 3113924
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size 0 : 3414314
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size 00 : 3414314.00
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size a : 3414314.A0
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size aa : 3414314.AA
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size b : 3414314.B0
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size bb : 3414314.BB
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size c : 3414314.C0
4t ø 75,5 piston size 0 with pin ø 15 and 3 rectangular rings size d : 3414314.D0
piston ring set 4t ø 75,5 : 3513917
pin clip ø 15x1 c-shaped : 3611398B
aluminium v4 head ø 74-75,5 for maxiscooter from 200 to 300 cc : 3813273
